Brand: Thomas & Betts
K974

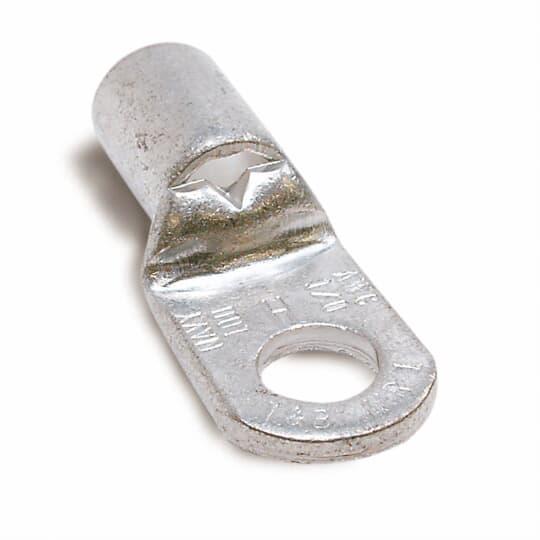

Thomas & Betts K974 Sta-Kon Ring Terminal
Part Number # K974
SKU # 2180563
$286.88 / 50Each
Thomas & Betts K974 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | K974 |
| SKU #: | 2180563 |
| Barrel Type: | Tubular |
| Conductor Size: | 2/0 AN to 3/0, 2/0 AN to 3/0 AWG |
| Finish: | TiN Coated |
| Series: | K Series |
| Specifications: | 0.54 in Clearance |
| Temperature Rating (Degrees F): | 150, 150 deg C |
| Tongue Size: | 0.93 in W x 0.06 in THK |
| Tongue Type: | Ring |
| Type: | Non-Insulated |
| Color: | Metallic |
| Country of origin: | MX |
| Length: | 2.08, 2.08 in |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121432 |
| UPC: | 00786210815800 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$286.88 / 50Each
Quantity:
- Sta-Kon Ring Terminal, Non-Insulated, Series: K Series, 2/0 AN to 3/0 AWG Conductor, 7/16 in Stud, 2.08 in Length, Tubular Barrel, Ring Tongue, 0.93 in W x 0.06 in THK Tongue, 600 V AC, 0.54 in Clearance, 150 deg C, Copper, Tin Coated, Metallic
K974 Application
For TBM6, TBM6S and WT3185 toolsK974 Item Features
- Non-insulated ring terminals are made of electrolytic copper for high conductivity/corrosion resistance
- Can be installed with crimping tools having a single indenter or double indenter (recommended for solid wire)
- Serrated barrel to increases grip-on wire
- 50 pieces/pack
K974 Standards
UL Listed|UL 94 V-0 Flammability Rated|UL File No. E9809|CSA CertifiedSKU #2180563Part Number #K974UNSPSC39121432UPC00786210815800
