Part Number # KN18-10R-M
SKU # 2236903
Image provided may only be a representation of
final product and may include optional equipment
KN18-10R-M

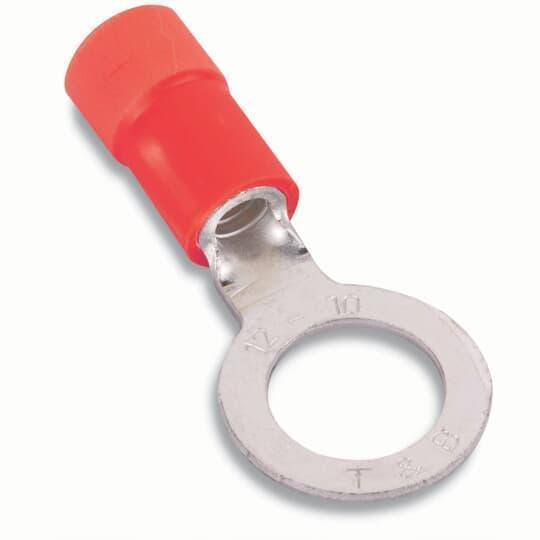

Thomas & Betts KN18-10R-M Sta-Kon Ring Terminal
Part Number # KN18-10R-M
SKU # 2236903
Thomas & Betts KN18-10R-M Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | KN18-10R-M |
| SKU #: | 2236903 |
| Barrel Size: | 0.067 in ID x 0.177 in OD |
| Barrel Type: | Brazed Seam, Brazed Seam/Funnel Entry/Internal Serration |
| Conductor Size: | 22 to 16, 22 to 16 AWG |
| Finish: | TiN Coated, Tin Plated |
| Series: | K Series |
| Specifications: | 0.276 in Clearance, Nylon Insulation |
| Temperature Rating (Degrees F): | 105, 105 deg C |
| Tongue Size: | 0.315 in W x 0.03 in THK |
| Tongue Type: | Ring |
| Type: | Insulated |
| Country of origin: | TW |
| Length: | 0.858, 0.858 in |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121432 |
| UPC: | 00786210102467 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts KN18-10R-M Sta-Kon Ring Terminal
Brand: Thomas & Betts
Part Number: KN18-10R-M
Spec-Kon Ring Terminal, Series: K Series, 22 to 16 AWG Conductor, #10 Stud, 0.858 in Length, Brazed Seam/Funnel Entry/Internal Serration Barrel, 0.067 in ID x 0.177 in OD Barrel, Ring Tongue, 0.315 in W x 0.03 in THK Tongue, 600 V, Specifications: 0.276 in Clearance, Nylon Insulation, 105 deg C, Copper, Tin Plated, Red
Additional Description: TB -KN18-10R-M (N) NYLON RING TERMINAL 22-16, No10 STU No10 STUD NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Nylon Insulated Ring Terminal, Length .858 Inches, Width .315 Inches, Bolt Hole #10, Wire Range #22-#16 AWG, Color Red, Copper, Tin Plated
KN18-10R-M Application
For WT112M and CM2000A toolsKN18-10R-M Item Features
- Nylon insulated ring terminal provides excellent chemical, impact and abrasion resistance
- Features internal barrel serrations for enhanced tensile strength, brazed seam connection for high conductivity
- Terminal has a molded funnel entry insulator for easy installation
- 1000 pieces/box
KN18-10R-M Standards
CSA Certified|cULus Listed|UL94 V-0 Flammability Rated|UL File No. E9809|UL ListedSKU #2236903Part Number #KN18-10R-MUNSPSC39121432UPC00786210102467
