KV14-8LF-M

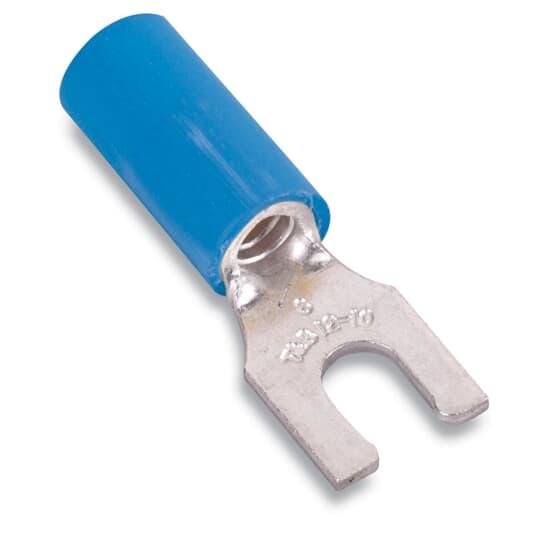

Thomas & Betts KV14-8LF-M Sta-Kon Fork Terminal
Part Number # KV14-8LF-M
SKU # 2143416
$343.40 / 1000Each
Thomas & Betts KV14-8LF-M Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | KV14-8LF-M |
| SKU #: | 2143416 |
| Barrel Size: | 0.177 in ID x 0.433 in L |
| Barrel Type: | Brazed Seam/Funnel Entry/Internal Serration, Brazed Seam/Serrated |
| Conductor Size: | 16 to 14, 16 to 14 AWG |
| Finish: | Electro-TiN Plated, Electroplated Tin |
| Series: | K Series |
| Specifications: | 0.256 in Clearance, Vinyl Insulation, 0.256 in Clearance, Vinyl Insulation, Funnel Entry Barrel Configuration |
| Temperature Rating (Degrees F): | 105, 105 deg C |
| Tongue Size: | 0.283 in W x 0.031 in THK |
| Tongue Type: | Locking Fork |
| Type: | Insulated |
| Color: | Blue |
| Country of origin: | TW |
| Length: | 0.866, 0.866 in |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121432 |
| UPC: | 00786210100821 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$343.40 / 1000Each
Quantity:
- Spec-Kon Fork Terminal, Series: K Series, 16 to 14 AWG Conductor, #8 Stud, 0.866 in Length, Brazed Seam/Funnel Entry/Internal Serration Barrel, 0.177 in ID x 0.433 in L Barrel, Locking Fork Tongue, 0.283 in W x 0.031 in THK Tongue, 600 V, Specifications: 0.256 in Clearance, Vinyl Insulation, 105 deg C, Copper, Electro-Tin Plated, Blue
KV14-8LF-M Item Features
- Molded funnel entry insulator
- Internal barrel serrations
- WT112M, CM2000A recommended tools
KV14-8LF-M Standards
CSA Certified|UL94 V-0 Flammability Rated|UL File No. E9809SKU #2143416Part Number #KV14-8LF-MUNSPSC39121432UPC00786210100821
