KV18-8R-T

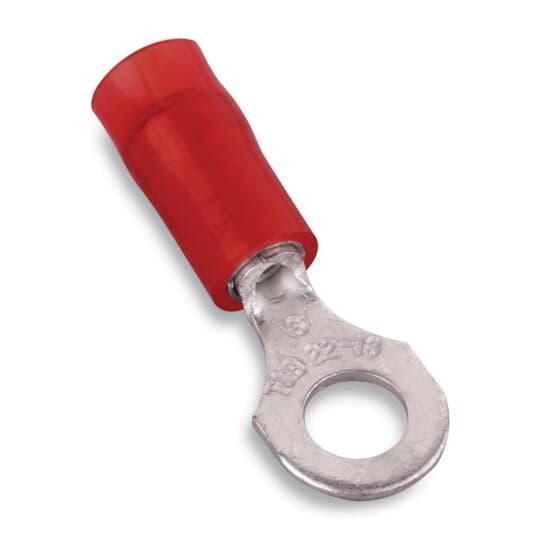

Thomas & Betts KV18-8R-T Sta-Kon Ring Terminal
Part Number # KV18-8R-T
SKU # 2182536
$1627.50 / 3000Each
Thomas & Betts KV18-8R-T Key Features
Brand: Thomas & Betts
Part Number # KV18-8R-T
SKU #2182536
Barrel Size: 0.067 in ID x 0.157 in OD x 0.433 in L
Barrel Type: Brazed Seam/Funnel Entry/Internal Serration
Conductor Size: 22 to 16, 22 to 16 AWG
Finish: Electro-TiN Plated
Series: K Series
Specifications: 1/4 in L Wire Strip, 1/4 in L Wire Strip, Vinyl Insulation
Temperature Rating (Degrees F): 105, 105 deg C
Tongue Size: 0.26 in W x 0.03 in THK
Tongue Type: Ring
Type: Insulated
Voltage Rating: 600, 600 V
Color: Red
Country of origin: TW
Length: 0.803, 0.803 in
Material: Copper, Copper/Vinyl
Manufacturer Name: ABB
UNSPSC: 39121432
UPC: 00786210654645
$1627.50 / 3000Each
- Spec-Kon Ring Terminal, Series: K Series, 22 to 16 AWG Conductor, #8 Stud, 0.803 in Length, Brazed Seam/Funnel Entry/Internal Serration Barrel, 0.067 in ID x 0.157 in OD x 0.433 in L Barrel, Ring Tongue, 0.26 in W x 0.03 in THK Tongue, 600 V, Specifications: 1/4 in L Wire Strip, Vinyl Insulation, 105 deg C, Copper, Electro-Tin Plated, Red
KV18-8R-T Application
Wiring Harness, Panelboard, Telecommunications and Automotive Industries ApplicationsKV18-8R-T Item Features
- Brazed seam ensures barrel does not separate during crimping
- Internal barrel serrations - during crimping, the wire will cold flow into serrations, giving lower resistance connections and improving tensile strength
- Size marking - wire range is stamped on the tongue (metric and English) for easy access to the terminal size without drawings/packaging
- Electro tin plating provides excellent corrosion resistance, superior finish for better looking installation
- Funnel entry speeds installation and reduces wire hang up
- Molded insulators ensure consistent shape and quality every time
- The insulator mouth is flared to speed installation and accommodate thicker insulated wires, also, provides insulation support strain relief in high vibration applications
- Economical, moisture-resistant and flame retardant
- Provides the most secure and reliable connection
KV18-8R-T Standards
CSA File No. LR4503|cULus Listed|UL94 V-0 Flammability Rated|UL File No. E9809SKU #2182536Part Number #KV18-8R-TUNSPSC39121432UPC00786210654645
