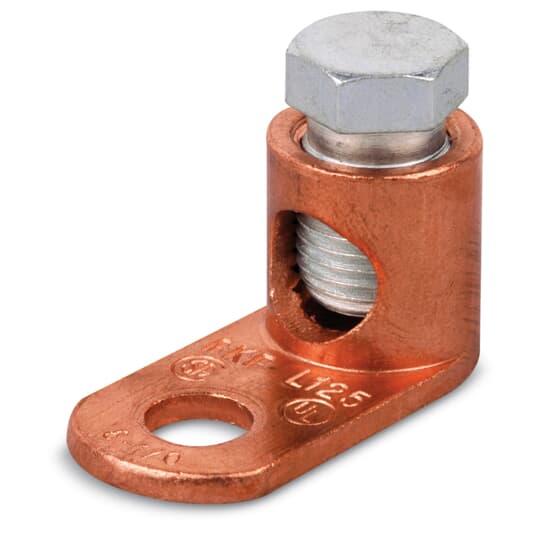

Thomas & Betts L125H Blackburn Mechanical Connector
Image Disclaimers Message
Thomas & Betts L125H Blackburn Mechanical Connector
Thomas & Betts L125H Blackburn Mechanical Connector
Part #:L125H
SKU #: 2312
Key Features
Part #:L125H
SKU #: 2312
Brand: Thomas & Betts
Conductor Size: 8 to 1/0, 8 to 1/0 AWG
Conductor Type: Stranded Solid Copper
Dimensions: 1-1/2 in L x 47/64 in W x 3/4 in H
Specifications: 1-Conductor, Hex Screw
Tongue Size: 27/32 in L x 47/64 in W x 3/32 in THK
- Cold forged from pure electrolytic copper with 99 percent conductivity
- 1-piece construction for strength and durability
- Excellent for confined quarters
- 2 stud of 21/64 in
Thomas & Betts L125H Blackburn Mechanical Connector
Blackburn Mechanical Connector, Type L, Stranded Solid Copper Conductor, 8 to 1/0 AWG Conductor, 21/64 in Stud, 1 Bolt Holes, 27/32 in L x 47/64 in W x 3/32 in THK Tongue, Straight Tongue, 1-Conductor, Hex Screw, Copper, 1-1/2 in L x 47/64 in W x 3/4 in H
Additional Description: TB -L125H CU 1COND 1HL MOUNT 8SOL-1/0STR HEX W/HEX HEAD SCREW
Catalog Description: Type L - Copper Single Conductor, One-Hole Mount, Hex, Conductor Range 8 Sol-1/0 Str, Length 1-1/2 Inches, Width 47/64 Inch, Height 3/4 Inch
