Part Number # L600N
SKU # 2360722
Image Disclaimers Message
L600N

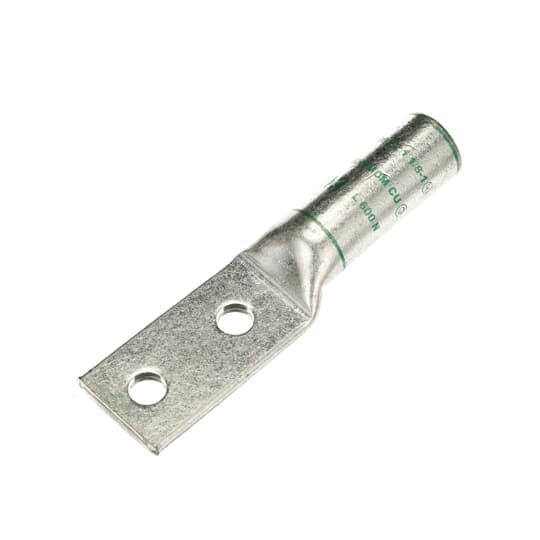

Thomas & Betts L600N Homac Compression Lug Connector
Part Number # L600N
SKU # 2360722
Thomas & Betts L600N Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | L600N |
| SKU #: | 2360722 |
| Barrel Size: | 2-5/8 in L |
| Conductor Size: | 600, 600 kcmil |
| Conductor Type: | Copper |
| Mounting Hole Size: | 9/16 in Dia |
| Overall Length: | 6-23/32, 6-23/32 in |
| Specifications: | 1-3/4 in Hole Spacing |
| Tongue Size: | 3-1/8 in L x 1-23/32 in W x 1/4 in THK |
| Tongue Type: | Straight |
| Type: | 2-Hole |
| Country of origin: | US |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121409 |
| UPC: | 00783786739356 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts L600N Homac Compression Lug Connector
Brand: Thomas & Betts
Part Number: L600N
Homac Compression Lug Connector, 2-Hole, Copper Conductor, 600 kcmil Conductor, Die Code: 96, 22, 1-1/8-1, 1/2 in Stud, Straight Tongue, 3-1/8 in L x 1-23/32 in W x 1/4 in THK Tongue, 6-23/32 in Overall Length, 2-5/8 in L Barrel, 1-3/4 in Hole Spacing, 9/16 in Dia Mounting Hole, Copper
Additional Description: TB -L600N (N) CU TINPLT 2HL NEMA LUG SZ600 1/2IN NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Tin Plated Copper Two-Hole Straight NEMA Lugs. wire size 600 kcmil CU. Installing Dies 96, 22, 1, 1-8/1. Length 6-23/32 inch. Pad 1-23/32 inch wide x 3-1/8 inch long x 1/4 inch thick. (2) 9/16 inch holes on 1-3/4 inch center. Barrel 2-5/8 inch. CSA. UL listed.
L600N Application
For general applicationsL600N Item Features
- Produced from seamless electrolytic copper tubing which provides high conductivity and minimizes voltage drop
- Marked with a catalog number, conductor sizes and dies references
- Two hole NEMA pad
L600N Standards
BAA Compliant|CSA LR35518|UL E9809SKU #2360722Part Number #L600NUNSPSC39121409UPC00783786739356
