L750N

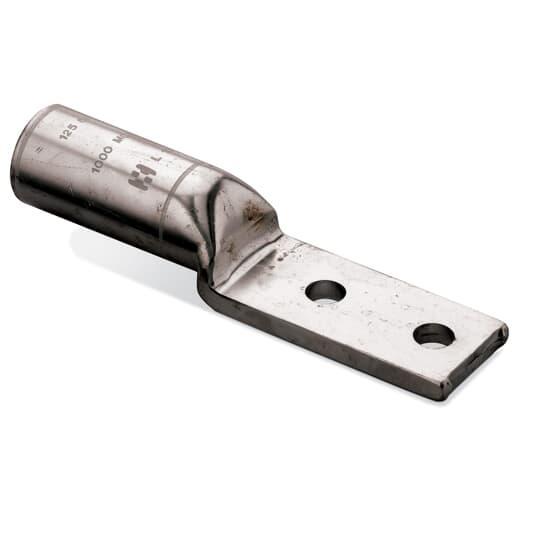

Thomas & Betts L750N Homac Compression Lug Connector
Part Number # L750N
SKU # 2354070
Thomas & Betts L750N Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | L750N |
| SKU #: | 2354070 |
| Barrel Size: | 2-13/16, 2-13/16 in |
| Conductor Size: | 750, 750 kcmil |
| Conductor Type: | Copper |
| Mounting Hole Size: | 9/16 in Dia |
| Overall Length: | 7, 7 in |
| Specifications: | Non-Insulated, 1-3/4 in Hole Spacing |
| Tongue Size: | 3-1/8 in L x 1-3/4 in W x 9/32 in THK |
| Tongue Type: | Straight |
| Type: | 2-Hole |
| Country of origin: | US |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121409 |
| UPC: | 00783786739455 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts L750N Homac Compression Lug Connector
Brand: Thomas & Betts
Part Number: L750N
Homac Compression Lug Connector, 2-Hole, Copper Conductor, 750 kcmil Conductor, Die Code: 106, 1-5/16, 1/2 in Stud, Straight Tongue, 3-1/8 in L x 1-3/4 in W x 9/32 in THK Tongue, 7 in Overall Length, 2-13/16 in Barrel, Non-Insulated, 1-3/4 in Hole Spacing, 9/16 in Dia Mounting Hole, Copper
Additional Description: TB -L750N (N) CU TINPLT 2HL NEMA LUG SZ750 1/2IN NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Tin Plated Copper Two-Hole Straight NEMA Lugs. wire size 750 kcmil CU. Installing Dies 106, 1 5/16. Length 7 inch. Pad 1-3/4 inch wide x 3-1/8 inch long x 9/32 inch thick. (2) 9/16 inch holes on 1-3/4 inch center. Barrel 2-13/16 inch. CSA. UL listed.
L750N Application
For general applicationsL750N Item Features
- Produced from seamless electrolytic copper tubing which provides high conductivity and minimizes voltage drop
- Marked with a catalog number, conductor sizes and dies references
- Two hole NEMA pad
L750N Standards
BAA Compliant|CSA LR35518|UL E9809SKU #2354070Part Number #L750NUNSPSC39121409UPC00783786739455
