Part Number # LB28-G1
SKU # 2247615
Image Disclaimers Message
LB28-G1

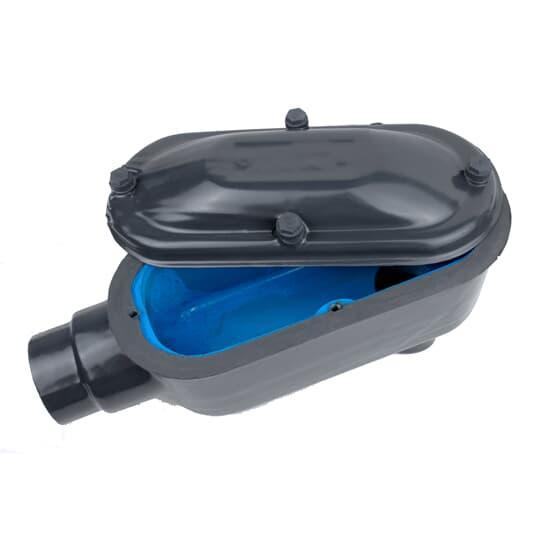

Thomas & Betts LB28-G1 Ocal OCAL-BLUE Conduit Body
Part Number # LB28-G1
SKU # 2247615
$152.64 /  Each
Typical price:$185.94 / Each
Thomas & Betts LB28-G1 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | LB28-G1 |
| SKU #: | 2247615 |
| Capacity: | 8, 8 cu-in |
| Dimensions: | 5.56 in L x 1.56 in W x 2.44 in H |
| Finish: | PVC Coated |
| Form: | Form 8 |
| Hub Size: | 3/4, 3/4 in |
| Type: | Type LB |
| Color: | Dark gray |
| Connection type: | Thread, Threaded |
| Country of origin: | US |
| Material: | Iron |
| Manufacturer Name: | ABB |
| UNSPSC: | 39131708 |
| UPC: | 00704508002176 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$152.64 /  Each
Typical price:$185.94 / Each
Quantity:
- Ocal OCAL-BLUE Conduit Body, Type LB, 3/4 in Hub, 2 Hubs, 8 cu-in Capacity, Form 8 Form, Thread Connection, Iron, PVC Coated, Dark Gray, 5.56 in L x 1.56 in W x 2.44 in H DimensionsLB28-G1 ApplicationFor pull outlets for conductors being installedLB28-G1 Item Features- The conduit body and cover are double coated with a nominal 0.002 in blue urethane on both the interior and exterior, before PVC coating is applied
- A minimum of 0.04 in PVC coating is bonded to the exterior
- Covers are coated with a molded flange to seal the conduit body while the conduit body is molded with a flat surface on its opening to seal with the cover
- Ocal Pressure sealing sleeves on all threaded hubs
- Ocal conduit bodies are shipped with a cover and encapsulated stainless steel screws
- Bodies are designed with a flat back, allowing more cubic inch capacity
- The flat back also keeps the body more stable during installation, requiring fewer conduit straps
- Provide openings for making splices and taps in conductors
- Connect conduit sections
- Provide taps for branch conduit runs
- Make 90 deg bends in conduit runs
- Provide for access to conductors for maintenance and future system changes
 LB28-G1 StandardsUL File No. E2969|CSA CertifiedSKU #2247615Part Number #LB28-G1UNSPSC39131708UPC00704508002176
