Brand: Thomas & Betts
LB37-G

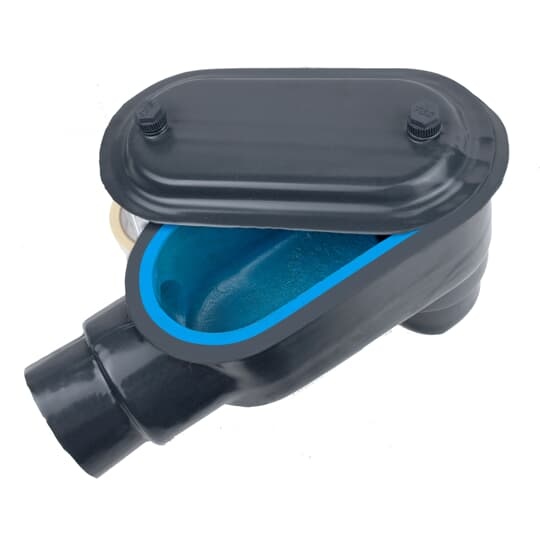

Thomas & Betts LB37-G Ocal OCAL-BLUE Conduit Body
Part Number # LB37-G
SKU # 2295208
$182.76 / Each
Typical price:$222.63 / Each
Thomas & Betts LB37-G Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | LB37-G |
| SKU #: | 2295208 |
| Capacity: | 10.6, 10.6 cu-in |
| Dimensions: | 6 in L x 1.8 in W x 2.65 in H |
| Enclosure: | NEMA RN-1 |
| Finish: | PVC Coated |
| Form: | Form 7 |
| Hub Size: | 1, 1 in |
| Type: | Type LB |
| Color: | Dark gray |
| Connection type: | Thread, Threaded |
| Country of origin: | US |
| Material: | Iron |
| Manufacturer Name: | ABB |
| UNSPSC: | 39131708 |
| UPC: | 00704508390303 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$182.76 / Each
Typical price:$222.63 / Each
Quantity:
Thomas & Betts LB37-G Ocal OCAL-BLUE Conduit Body
Brand: Thomas & Betts
Part Number: LB37-G
Ocal OCAL-BLUE Conduit Body, Type LB, 1 in Hub, 2 Hubs, 10.6 cu-in Capacity, Form 7 Form, NEMA RN-1 Enclosure, Thread Connection, Iron, PVC Coated, Dark Gray, 6 in L x 1.8 in W x 2.65 in H Dimensions
Additional Description: TB -LB37-G COND BODY LB SHAPE FRM7 1IN DGRAY
Catalog Description: PVC Coated Conduit Body, LB Shape, Form 7, Size 1 Inch/27 Metric, Iron, Dark Gray
LB37-G Application
For pull outlets for conductors being installedLB37-G Item Features
- The conduit body and cover are double coated with a nominal 0.002 in blue urethane on both the interior and exterior, before PVC coating is applied
- A minimum of 0.04 in PVC coating is bonded to the exterior
- Covers are coated with a molded flange to seal the conduit body while the conduit body is molded with a flat surface on its opening to seal with the cover
- Ocal Pressure sealing sleeves on all threaded hubs
- Ocal conduit bodies are shipped with a cover and encapsulated stainless steel screws
- Bodies are designed with a flat back, allowing more cubic inch capacity
- The flat back also keeps the body more stable during installation, requiring fewer conduit straps
- Provide openings for making splices and taps in conductors
- Connect conduit sections
- Provide taps for branch conduit runs
- Make 90 deg bends in conduit runs
- Provide for access to conductors for maintenance and future system changes
LB37-G Standards
UL File No. E2969|CSA CertifiedSKU #2295208Part Number #LB37-GUNSPSC39131708UPC00704508390303
