Brand: Thomas & Betts
LB87

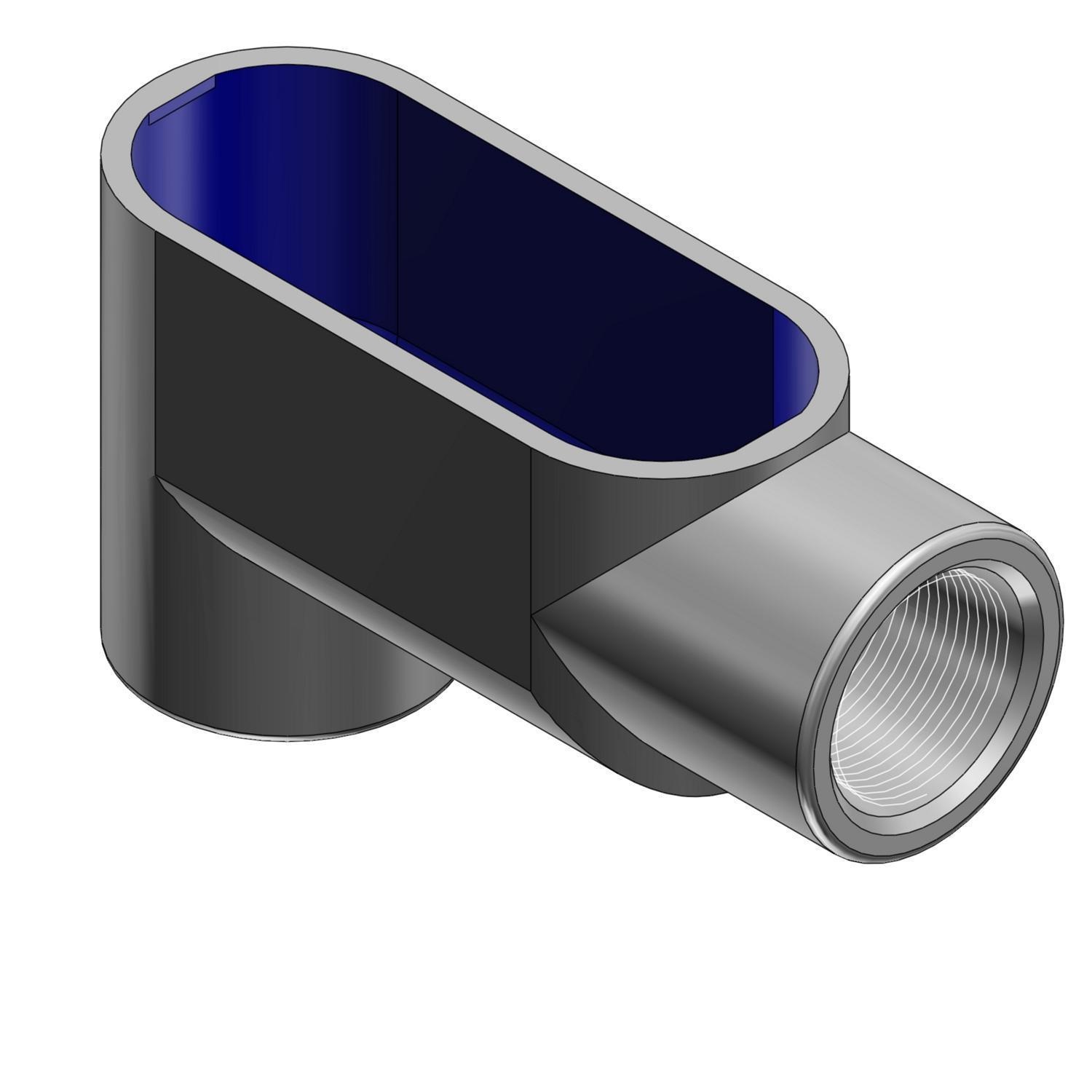

Thomas & Betts LB87 BlueKote Conduit Body
Part Number # LB87
SKU # 2165038
$353.84 / Each
Typical price:$474.14 / Each
Thomas & Betts LB87 Key Features
Brand: Thomas & Betts
Part Number # LB87
SKU #2165038
Capacity: 132, 132 cu-in
Dimensions: 10.55 in L x 4.25 in W x 5.95 in H
Finish: Epoxy Powder Coated/Zinc Plated
Form: Form 7
Hub Size: 3, 3 in
Type: Type LB
Connection type: Tapered NPT, Tapered/NPT
Country of origin: CN
Material: Gray Iron
Manufacturer Name: ABB
UNSPSC: 39131708
UPC: 00786210933412
$353.84 / Each
Typical price:$474.14 / Each
SKU # 2165038
Part Number # LB87
Thomas & Betts LB87 BlueKote Conduit Body
Brand: Thomas & Betts
Part Number: LB87
T&B BlueKote Conduit Body, Type LB, 3 in Hub, 2 Hubs, 132 cu-in Capacity, Form 7, Tapered NPT, Gray Iron, Epoxy Powder Coated/Zinc Plated, 10.55 in L x 4.25 in W x 5.95 in H
Additional Description: TB -LB87 3 IN CONDUIT BODY,GRAY IRON,LB,F-7
Catalog Description: 3 Inch Form 7, LB Conduit Body, Body Material Gray Iron with Zinc Plating and Baked On Epoxy Powder Coat with BlueKote Internal Coating for Use with Rigid/IMC Conduit
LB87 Application
For rigid/IMC conduit, connect sections, act as pull outlets when conductors are being installed and provide easy access for splices in branch conductorsLB87 Item Features
- Bluekote teflon based internal finish provides a slick, easy glide internal surface which significantly lowers the amount of force necessary to pull wires
- Eliminates rough internal surfaces that can cut into cable jacket, insulation and conductors during pulling and also reduces installation time and risk of installer strain
- Triple layer protection including two layers of epoxy coating which stops corrosion in its tracks
- Bodies are designed with a flat back, allowing more cubic inch capacity
- Conduit bodies make 90 deg bends in conduit runs, act as mounting outlets for wiring devices and lighting fixtures and to provide access to conductors for maintenance and future system changes
- Connect conduit sections
- Act as pull outlets when conductors are being installed and provide easy access for splices in branch conductors
LB87 Standards
CSA Certified|UL File No. E2969SKU #2165038Part Number #LB87UNSPSC39131708UPC00786210933412
