Part Number # LCN250
SKU # 2234568
Image Disclaimers Message
LCN250

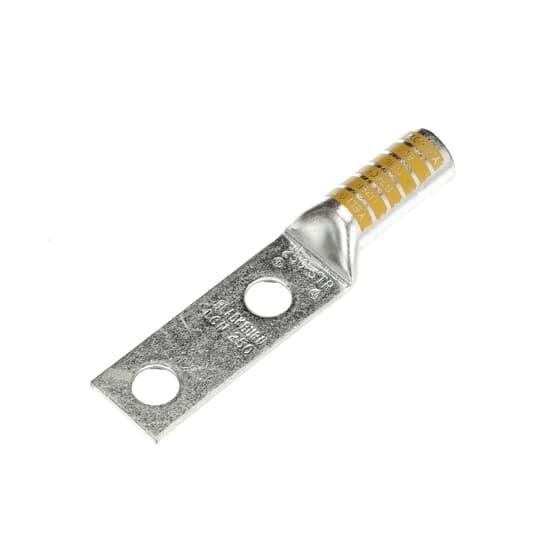

Thomas & Betts LCN250 Blackburn Compression Lug
Part Number # LCN250
SKU # 2234568
$315.69 / 10Each
Thomas & Betts LCN250 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | LCN250 |
| SKU #: | 2234568 |
| Barrel Size: | 1-19/32 in L |
| Barrel Type: | Long |
| Conductor Size: | 250, 250 kcmil |
| Conductor Type: | Copper, Flexible/Stranded Copper |
| Overall Length: | 4-29/32, 4-29/32 in |
| Series: | LCN |
| Specifications: | 1-3/4 in Hole Spacing, 1-3/4 in Hole Spacing, Tin Plated |
| Tongue Size: | 3 in L x 1-1/16 in W x 1/8 in THK |
| Tongue Type: | Straight |
| Type: | 2-Hole |
| Color: | Yellow |
| Country of origin: | MX |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121405 |
| UPC: | 00783786032532 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$315.69 / 10Each
Quantity:
- Color-Keyed Compression Lug, 2-Hole, Series: LCN, Flexible/Stranded Copper Conductor, 250 kcmil Conductor, 35 kV, 1/2 in Stud, Straight Tongue, 3 in L x 1-1/16 in W x 1/8 in THK Tongue, 4-29/32 in Overall Length, Long Barrel, 1-19/32 in L Barrel, Specifications: 1-3/4 in Hole Spacing, Tin Plated, Copper, Yellow
LCN250 Application
Industrial, Oil Rig, Mining, Welding and Transportation Electrical Termination ApplicationsLCN250 Item Features
- For use with copper conductor AWG, stranded, flexible cable, welding cable and portable cord
- Made of high conductivity seamless copper tubing
- Tin plated for corrosion-resistance
- Specially chamfered barrel for ease of installation
- Color coded for matching die identification
- Can be used for medium voltage application up to 35 kV provided proper insulation techniques are used
- Comply with subpart 111.60-17 of federal registers coast guard electrical engineering rules and regulations
- Heavy duty design which permits additional crimp for added mechanical strength
LCN250 Standards
CSA Certified|UL File No. E9809SKU #2234568Part Number #LCN250UNSPSC39121405UPC00783786032532
