Part Number # LH132AMV
SKU # 2295278
Image Disclaimers Message
LH132AMV

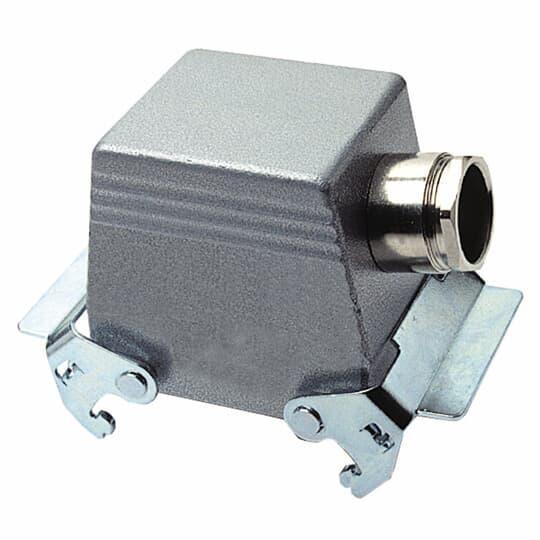

Thomas & Betts LH132AMV Pos-E-Kon Reverse Locking Lever Hood
Part Number # LH132AMV
SKU # 2295278
$236.69 / Each
Typical price:$317.16 / Each
Thomas & Betts LH132AMV Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | LH132AMV |
| SKU #: | 2295278 |
| Entry Type: | 1 x 1 in NPT |
| Finish: | Epoxy Powder Coated |
| Series: | A Series |
| Specifications: | 16 A, 600 V AC, 16 A, 600 VAC |
| Suitable For Use With: | Post Base |
| Temperature Rating (Degrees F): | -40 to 257, -40 to 257 deg F |
| Type: | Double |
| Country of origin: | DE |
| Material: | Die Cast Aluminum |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121424 |
| UPC: | 00786209987600 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$236.69 / Each
Typical price:$317.16 / Each
Quantity:
- Pos-E-Kon Reverse Locking Lever Hood, Double, Series: A Series, Side Entry Position, 1 x 1 in NPT Entry, For Use With: Post Base, -40 to 257 deg F, Specifications: 16 A, 600 V AC, Die Cast Aluminum, Epoxy Powder Coated
LH132AMV Item Features
- 32 contacts with ground
- 1-outlet double lever hood reverse locking side entry is made of die cast aluminum alloy for added durability
- IP65 internal protection DIN VDE 0470
- At A3, 4, 10 and 16 locking mechanism
- A32 double lock system 1 x PG29-1 connection
LH132AMV Standards
CSA Certified|UL File No. E215386|IEC 529|VDE 0470SKU #2295278Part Number #LH132AMVUNSPSC39121424UPC00786209987600
