Brand: Thomas & Betts

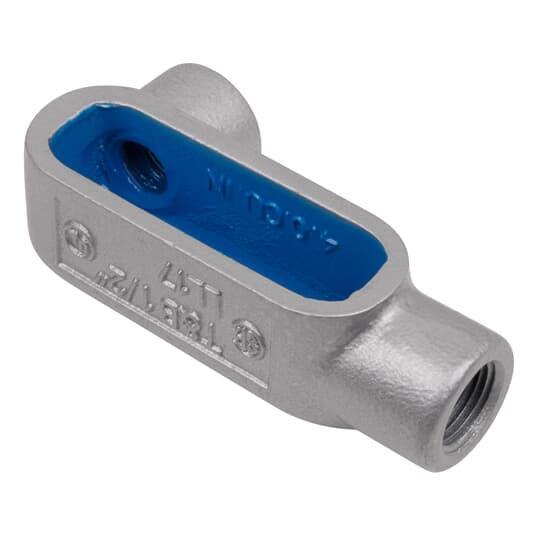

Thomas & Betts LL17-G
Image Disclaimers Message
Brand: Thomas & Betts
Thomas & Betts LL17-G
Brand: Thomas & Betts
Thomas & Betts LL17-G
Part #:LL17-G
SKU #: 2386254
$108.13/EA
Key Features
Part #:LL17-G
SKU #: 2386254
Brand: Thomas & Betts
Capacity: 4, 4 cu-in
Dimensions: 4.6 in L x 1.4 in W x 1.45 in H
Finish: PVC Coated
Form: Form 7
Hub Size: 1/2, 1/2 in
$108.13/EA
- The conduit body and cover are double coated with a nominal 0.002 in blue urethane on both the interior and exterior, before PVC coating is applied
- A minimum of 0.04 in PVC coating is bonded to the exterior
- Covers are coated with a molded flange to seal the conduit body while the conduit body is molded with a flat surface on its opening to seal with the cover
- Ocal Pressure sealing sleeves on all threaded hubs
- Ocal conduit bodies are shipped with a cover and encapsulated stainless steel screws
- Bodies are designed with a flat back, allowing more cubic inch capacity
- Provide openings for making splices and taps in conductors
- Connect conduit sections
- Provide taps for branch conduit runs
- Make 90 deg bends in conduit runs
- Provide for access to conductors for maintenance and future system changes
Specifications
Brand: Thomas & Betts
Capacity: 4, 4 cu-in
Dimensions: 4.6 in L x 1.4 in W x 1.45 in H
Finish: PVC Coated
Form: Form 7
Hub Size: 1/2, 1/2 in
Type: Type LL
Color: Dark gray
Connection type: Thread
Country of origin: US
Material: Iron
Manufacturer Name: ABB
UNSPSC: 39131708
UPC: 00704508392666
Thomas & Betts LL17-G
Ocal OCAL-BLUE Conduit Body, Type LL, 1/2 in Hub, 2 Hubs, 4 cu-in Capacity, Form 7 Form, Thread Connection, Iron, PVC Coated, Dark Gray, 4.6 in L x 1.4 in W x 1.45 in H Dimensions
Additional Description: TB -LL17-G COND BODY LL SHAPE FRM7 1/2IN GRY
Catalog Description: PVC Coated Conduit Body, LL Shape, Form 7, Size 1/2 Inch/16 Metric, Iron, Dark Gray
Item FeaturesFor pull outlets for conductors being installed
Item Features
Item FeaturesUL File No. E2969|CSA Certified
