Brand: Thomas & Betts

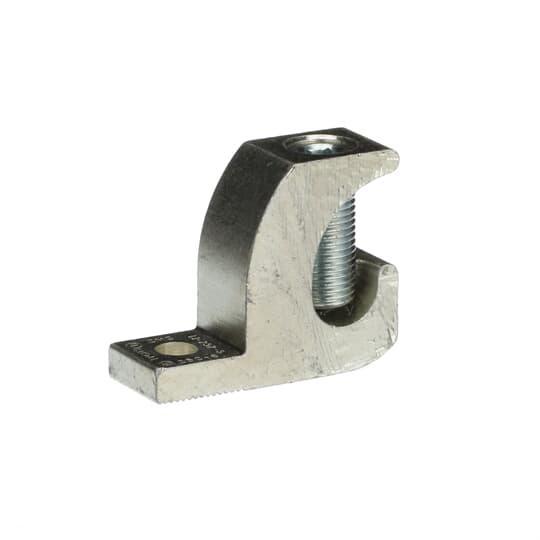

Thomas & Betts LL2506 Blackburn E-Z Ground Lay-In Lug Connector
Image Disclaimers Message
Brand: Thomas & Betts
Thomas & Betts LL2506 Blackburn E-Z Ground Lay-In Lug Connector
Brand: Thomas & Betts
Thomas & Betts LL2506 Blackburn E-Z Ground Lay-In Lug Connector
Part #:LL2506
SKU #: 2404555
$53.50/5EA
Key Features
Part #:LL2506
SKU #: 2404555
Brand: Thomas & Betts
Conductor Size: 6 AWG to 250 kcmil
Dimensions: 2.2 in L x 0.8 in W x 1.79 in H
Insulation Type: Non-Insulated
Type: Mechanical
Country of origin: CA
$53.50/5EA
- Dual rated for both copper and aluminum conductor
- Manufactured from 6061-T6 aluminum alloy for maximum strength and conductivity
- Open faced design enables installer to quickly lay-in grounding conductor as jumper to multiple conduits with no break in ground conductor
- 93 deg C operating temperature
Specifications
Brand: Thomas & Betts
Conductor Size: 6 AWG to 250 kcmil
Dimensions: 2.2 in L x 0.8 in W x 1.79 in H
Insulation Type: Non-Insulated
Type: Mechanical
Country of origin: CA
Material: Aluminum
Manufacturer Name: ABB
UNSPSC: 39121613
UPC: 00786210787046
Thomas & Betts LL2506 Blackburn E-Z Ground Lay-In Lug Connector
Blackburn E-Z Ground Lay-In Lug Connector, Mechanical, 6 AWG to 250 kcmil Conductor, 0.33 in Stud, Non-Insulated Insulation, Aluminum, 2.2 in L x 0.8 in W x 1.79 in H
Additional Description: TB -LL2506 LAY IN LUG No6STR - 250MCM
Catalog Description: Aluminum Lay-in-Lug Connector, Conductor Range 6-250 AWG, Stud Size 0.33 Inches
Item FeaturesGrounding Applications
Item Features
Item FeaturesCSA Certified|UL File No. E9809
