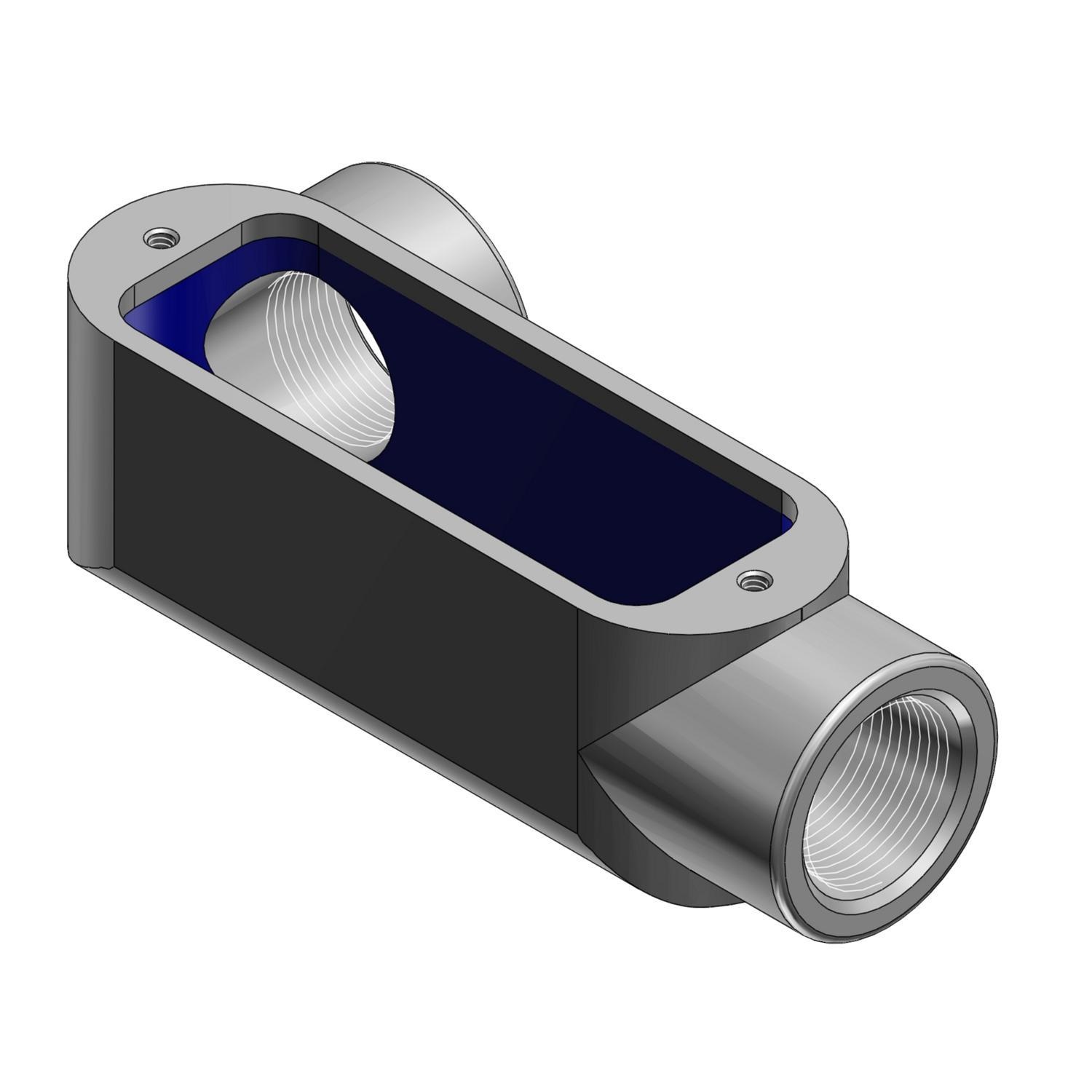

Thomas & Betts LL68 BlueKote Conduit Body
Part Number # LL68
SKU # 2290591
$161.07 / Each
Typical price:$215.84 / Each
Thomas & Betts LL68 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | LL68 |
| SKU #: | 2290591 |
| Capacity: | 88, 88 cu-in |
| Dimensions: | 11 in L x 3.56 in W x 5 in H |
| Finish: | Epoxy Powder Coated/Zinc Plated, Zinc Plated with Epoxy Powder Coated |
| Form: | Form 8 |
| Hub Size: | 2, 2 in |
| Type: | Type LL |
| Color: | Gray |
| Connection type: | Tapered NPT |
| Country of origin: | CN |
| Material: | Gray Iron, Iron |
| Manufacturer Name: | ABB |
| UNSPSC: | 39131708 |
| UPC: | 00786210165820 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$161.07 / Each
Typical price:$215.84 / Each
Quantity:
Thomas & Betts LL68 BlueKote Conduit Body
Brand: Thomas & Betts
Part Number: LL68
T&B BlueKote Conduit Body, Type LL, 2 in Hub, 2 Hubs, 88 cu-in Capacity, Form 8, Tapered NPT, Iron, Epoxy Powder Coated/Zinc Plated, Gray, 11 in L x 3.56 in W x 5 in H
Additional Description: TB -LL68 (N) 2IN CONDUIT BODY,GRAY IRON, LL, F-8 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: 2 Inch Form 8, LL Conduit Body, Body Material Gray Iron with Zinc Plating and Baked On Epoxy Powder Coat with BlueKote Internal Coating for Use with Rigid/IMC Conduit
LL68 Application
For rigid/IMC conduit, connect sections, act as pull outlets when conductors are being installed and provide easy access for splices in branch conductorsLL68 Item Features
- Eliminates rough internal surfaces that can cut into cable jacket, insulation and conductors during pulling and also reduces installation time and risk of installer strain
- Triple layer protection including two layers of epoxy coating which stops corrosion in its tracks
- Bodies are designed with a flat back, allowing more cubic inch capacity
- T and b form 7 bodies and covers are interchangeable with Crouse-Hinds and Appleton form 7 bodies and covers
- Conduit bodies make 90 deg bends in conduit runs, act as mounting outlets for wiring devices and lighting fixtures and to provide access to conductors for maintenance and future system changes
- Bluekote Teflon based internal finish provides a slick, easy glide internal surface which significantly lowers the amount of force necessary to pull wires
LL68 Standards
CSA Certified|UL File No. E2969SKU #2290591Part Number #LL68UNSPSC39131708UPC00786210165820
