Part Number # LL75M
SKU # 2275299
LL75M
Thomas & Betts LL75M Conduit Body
Part Number # LL75M
SKU # 2275299
Thomas & Betts LL75M Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | LL75M |
| SKU #: | 2275299 |
| Capacity: | 7.5, 7.5 cu-in |
| Dimensions: | 5-3/8 in L x 1-11/16 in W x 2-1/4 in H |
| Finish: | Aluminum Acrylic Coated/Zinc Plated, Zinc Plated with Aluminum Acrylic Coated |
| Form: | Form 35 |
| Hub Size: | 3/4, 3/4 in |
| Series: | 35 Series |
| Type: | Type LL |
| Connection type: | Tapered NPT, Tapered/NPT |
| Country of origin: | CN |
| Material: | Malleable Iron |
| Manufacturer Name: | ABB |
| UNSPSC: | 39131708 |
| UPC: | 00786210961255 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts LL75M Conduit Body
Brand: Thomas & Betts
Part Number: LL75M
T&B Conduit Body, Type LL, Series: 35 Series, 3/4 in Hub, 2 Hubs, 7.5 cu-in Capacity, Form 35, Tapered NPT, Malleable Iron, Aluminum Acrylic Coated/Zinc Plated, Gray, 5-3/8 in L x 1-11/16 in W x 2-1/4 in H
Additional Description: TB -LL75M 3/4 SERIES 35 CONDUIT BODY
Catalog Description: Series 35 Left Side Opening 3/4 Inch Conduit Body, Body Material Malleable Iron, Finish Zinc Plating with an Aluminum, Acrylic Coating for Use with Rigid/IMC Conduit
LL75M Application
For connect conduit sections and rigid/IMC conduitLL75M Item Features
- Zinc plated iron construction with aluminum acrylic coating provides durability, impact-resistant and corrosion-resistance
- Features tapered, threaded NPT hubs
- Suitable for use in concrete
- Left side access opening, 90 deg hub location
- To connect conduit sections
- Serve as pulling outlets during conductor installation
- Provide easy access for splices in branch conductors, make 90 deg bends in conduit runs
- Act as mounting outlets for wiring devices and lighting fixtures
- Provide access to conductors for maintenance and future system changes
LL75M Standards
UL E2969, CSASKU #2275299Part Number #LL75MUNSPSC39131708UPC00786210961255

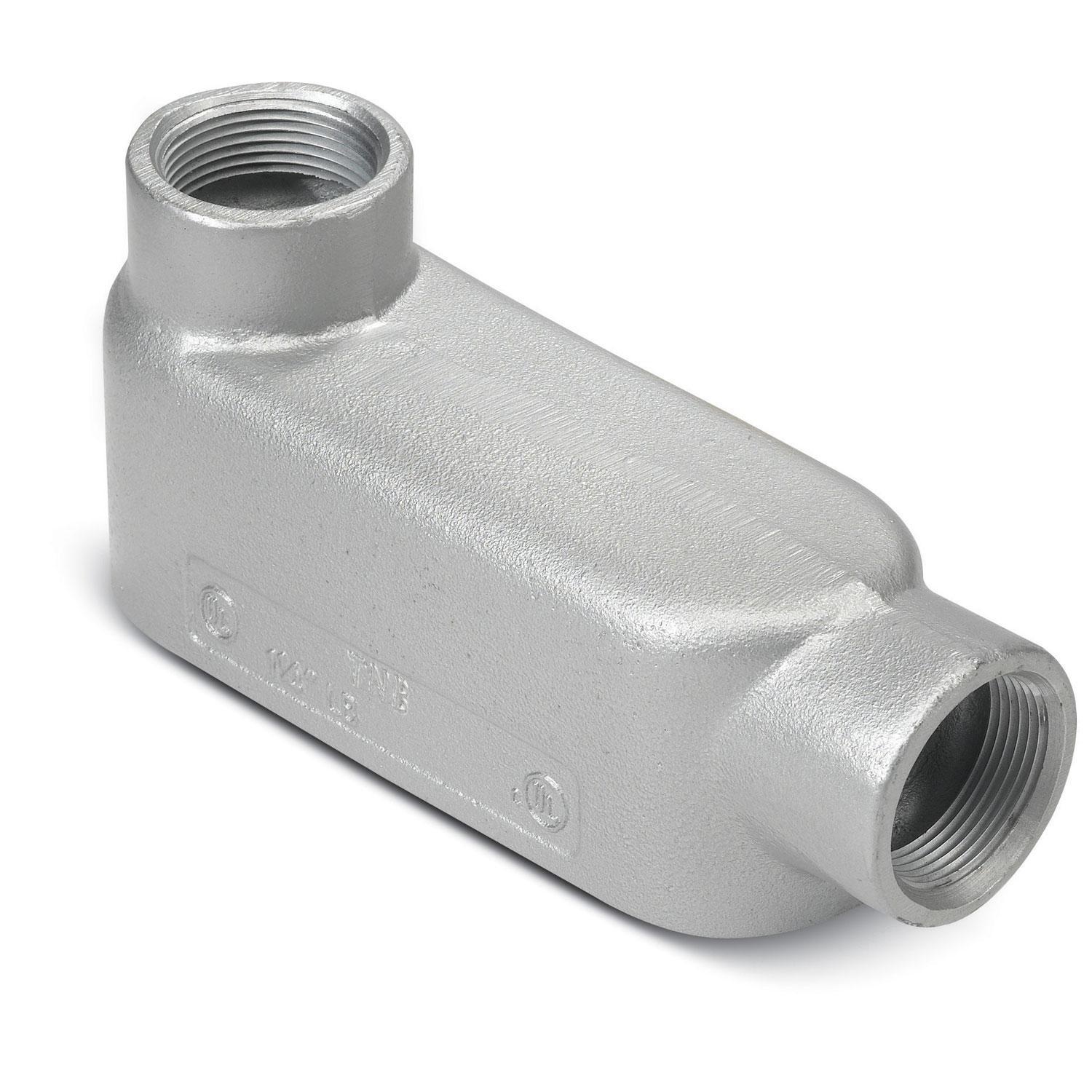

Image provided may only be a representation of final product and may include optional equipment
