Part Number # LL87
SKU # 2234277
Image Disclaimers Message
Brand: Thomas & Betts
LL87

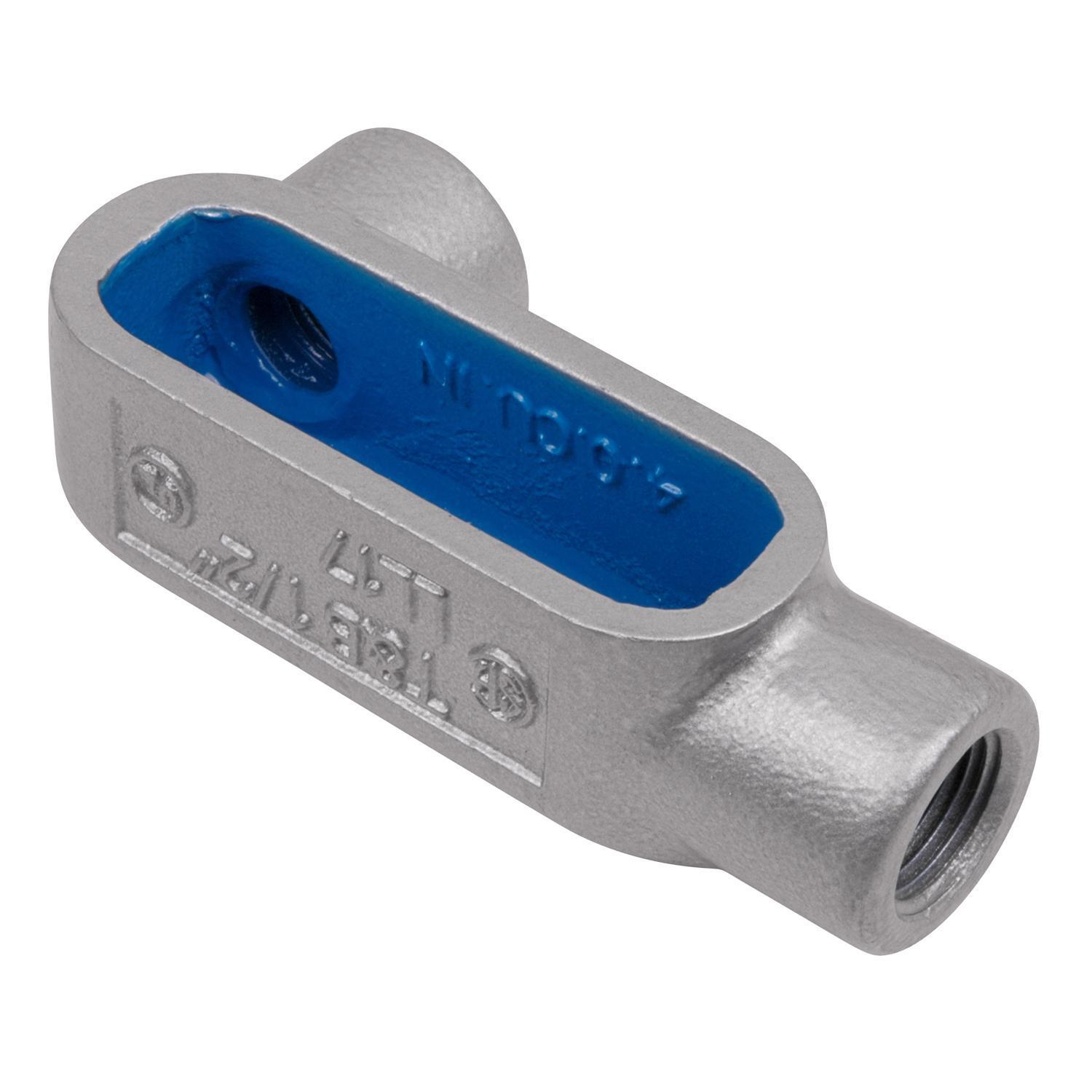

Thomas & Betts LL87 BlueKote Conduit Body
Part Number # LL87
SKU # 2234277
$371.03 / Each
Typical price:$507.32 / Each
Thomas & Betts LL87 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | LL87 |
| SKU #: | 2234277 |
| Capacity: | 132 cu-in |
| Dimensions: | 10.55 in L x 4.4 in W x 5.8 in H |
| Finish: | Epoxy Powder Coated/Zinc Plated |
| Form: | Form 7 |
| Hub Size: | 3 in |
| Type: | Type LL |
| Color: | Gray |
| Connection type: | Tapered NPT |
| Country of origin: | CN |
| Material: | Iron |
| Manufacturer Name: | ABB |
| UNSPSC: | 39131708 |
| UPC: | 00786210933498 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$371.03 / Each
Typical price:$507.32 / Each
Quantity:
Thomas & Betts LL87 BlueKote Conduit Body
Brand: Thomas & Betts
Part Number: LL87
T&B BlueKote Conduit Body, Type LL, 3 in Hub, 2 Hubs, 132 cu-in Capacity, Form 7, Tapered NPT, Iron, Epoxy Powder Coated/Zinc Plated, Gray, 10.55 in L x 4.4 in W x 5.8 in H
Additional Description: TB -LL87 3 IN CONDUIT BODY,GRAY IRON,LL,F-7
Catalog Description: 3 Inch Form 7, LL Conduit Body, Body Material Gray Iron with Zinc Plating and Baked On Epoxy Powder Coat with BlueKote Internal Coating for Use with Rigid/IMC Conduit
LL87 Application
For rigid/IMC conduit, connect sections, act as pull outlets when conductors are being installed and provide easy access for splices in branch conductorsLL87 Item Features
- Bluekote Teflon based internal finish provides a slick, easy glide internal surface which significantly lowers the amount of force necessary to pull wires
- Eliminates rough internal surfaces that can cut into cable jacket, insulation and conductors during pulling and also reduces installation time and risk of installer strain
- Triple layer protection including two layers of epoxy coating which stops corrosion in its tracks
- Bodies are designed with a flat back, allowing more cubic inch capacity
- T and b form 7 bodies and covers are interchangeable with Crouse-Hinds and Appleton form 7 bodies and covers
- Conduit bodies make 90 deg bends in conduit runs, act as mounting outlets for wiring devices and lighting fixtures and to provide access to conductors for maintenance and future system changes
LL87 Standards
CSA Certified|UL File No. E2969SKU #2234277Part Number #LL87UNSPSC39131708UPC00786210933498
