LR27CG-TB

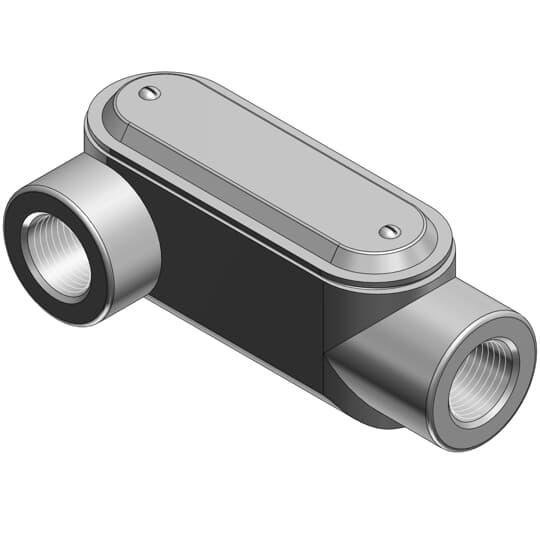

Thomas & Betts LR27CG-TB BlueKote Conduit Body
Part Number # LR27CG-TB
SKU # 2147194
Thomas & Betts LR27CG-TB Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | LR27CG-TB |
| SKU #: | 2147194 |
| Capacity: | 4, 4 cu-in |
| Dimensions: | 5.25 in L x 1.65 in W x 1.6 in H |
| Finish: | Epoxy Powder Coated/Zinc Plated, Zinc Plated with Epoxy Powder Coated |
| Form: | Form 7 |
| Hub Size: | 3/4, 3/4 in |
| Type: | Type LR Pre-Assembled |
| Color: | Gray |
| Connection type: | Tapered NPT |
| Country of origin: | CN |
| Material: | Gray Iron, Iron |
| Manufacturer Name: | ABB |
| UNSPSC: | 39131708 |
| UPC: | 00786210916934 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts LR27CG-TB BlueKote Conduit Body
Brand: Thomas & Betts
Part Number: LR27CG-TB
T&B BlueKote Conduit Body, Type LR Pre-Assembled, 3/4 in Hub, 2 Hubs, 4 cu-in Capacity, Form 7, Tapered NPT, Iron, Epoxy Powder Coated/Zinc Plated, Gray, 5.25 in L x 1.65 in W x 1.6 in H
Additional Description: TB -LR27CG-TB 3/4 IN C-BODY, CVR & GSKT, LR, F-7
Catalog Description: 3/4 Inch Form 7 (LR) Pre-Assembled Conduit Body, Cover and Gasket, Body Material Gray Iron/Zinc Plating and Baked On Epoxy Powder Coat with BlueKote Internal Coating, Cover Material and Finish Stamped Steel/Zinc Plating
LR27CG-TB Application
For connect sections, act as pull outlets when conductors are being installed and provide easy access for splices in branch conductorsLR27CG-TB Item Features
- Bluekote Teflon based internal finish provides a slick, easy glide internal surface which significantly lowers the amount of force necessary to pull wires
- Eliminates rough internal surfaces that can cut into cable jacket, insulation and conductors during pulling and also reduces installation time and risk of installer strain
- Right side access opening
- Triple layer protection including two layers of epoxy coating which stops corrosion in its tracks
- Bodies are designed with a flat back, allowing more cubic inch capacity
- Conduit bodies make 90 deg bends in conduit runs, act as mounting outlets for wiring devices and lighting fixtures and to provide access to conductors for maintenance and future system changes
LR27CG-TB Standards
CSA Certified|UL File No. E2969SKU #2147194Part Number #LR27CG-TBUNSPSC39131708UPC00786210916934
