LR47CG-TB

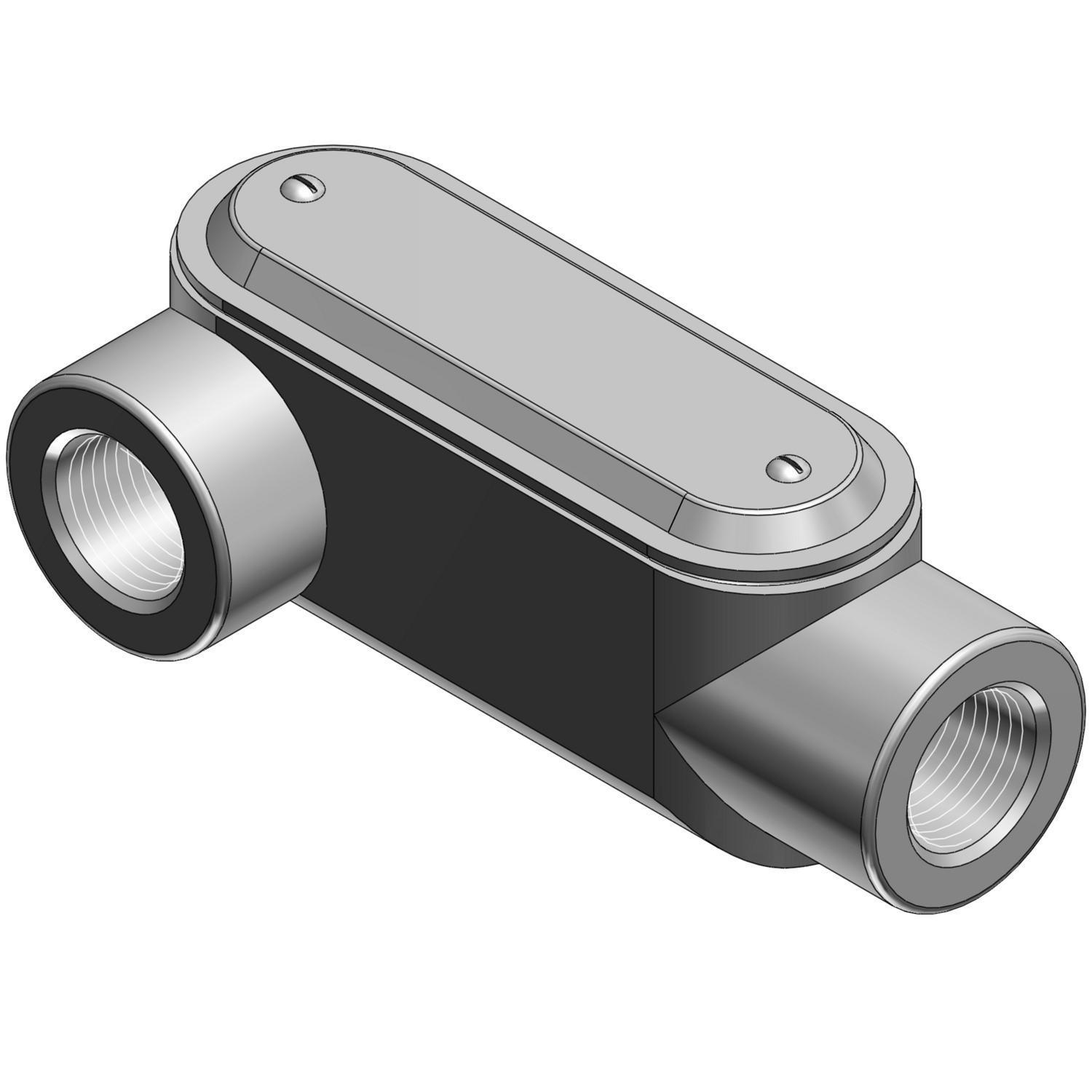

Thomas & Betts LR47CG-TB Conduit Body
Part Number # LR47CG-TB
SKU # 2147199
Thomas & Betts LR47CG-TB Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | LR47CG-TB |
| SKU #: | 2147199 |
| Capacity: | 18.8 |
| Dimensions: | 6.44 in L x 2.35 in W |
| Finish: | Epoxy Powder Coated/Zinc Plated, Zinc Plated |
| Form: | Form 7 |
| Hub Size: | 1-1/4, 1-1/4 in |
| Series: | LR Series |
| Type: | Pre-Assembled, Type LR |
| Color: | Gray |
| Country of origin: | CN |
| Material: | Gray Iron, Iron |
| Manufacturer Name: | ABB |
| UNSPSC: | 39131708 |
| UPC: | 00786210916958 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
- Thomas & Betts LR47CG-TB Conduit Body - Brand: Thomas & Betts - Part Number: LR47CG-TB - T&B Conduit Body, Pre-Assembled, Series: LR Series, 1-1/4 in Hub, 2 Hubs, Form 7, Iron, Epoxy Powder Coated/Zinc Plated, Gray, 6.44 in L x 2.35 in W - Additional Description: TB -LR47CG-TB (N) 1-1/4 IN C-BDY, CVR & GSKT, LR, F-7 LR, F 7 F-7 F-7 NON-CANCELABLE, NON-RETURNABLE - Catalog Description: 1-1/4 Inch Form 7 (LR) Pre-Assembled Conduit Body, Cover and Gasket, Body Material Gray Iron/Zinc Plating and Baked On Epoxy Powder Coat with BlueKote Internal Coating, Cover Material and Finish Stamped Steel/Zinc Plating - LR47CG-TB ApplicationFor connect sections, act as pull outlets when conductors are being installed and provide easy access for splices in branch conductors- LR47CG-TB Item Features- BlueKote PTFE based internal finish provides a slick, easy glide internal surface which significantly lowers the amount of force necessary to pull wires
- Eliminates rough internal surfaces that can cut into cable jacket, insulation and conductors during pulling and also reduces installation time and risk of installer strain
- Triple layer protection including two layers of epoxy coating which stops corrosion in its tracks
- Bodies are designed with a flat back, allowing more cubic in capacity
- T&B form 7 bodies and covers are interchangeable with Crouse-Hinds and Appletons form 7 bodies and covers
- Conduit bodies make 90 deg bends in conduit runs, act as mounting outlets for wiring devices and lighting fixtures and to provide access to conductors for maintenance and future system changes
 - LR47CG-TB StandardsCSA Certified|UL File No. E2969SKU #2147199Part Number #LR47CG-TBUNSPSC39131708UPC00786210916958
