Brand: Thomas & Betts
LR67-G

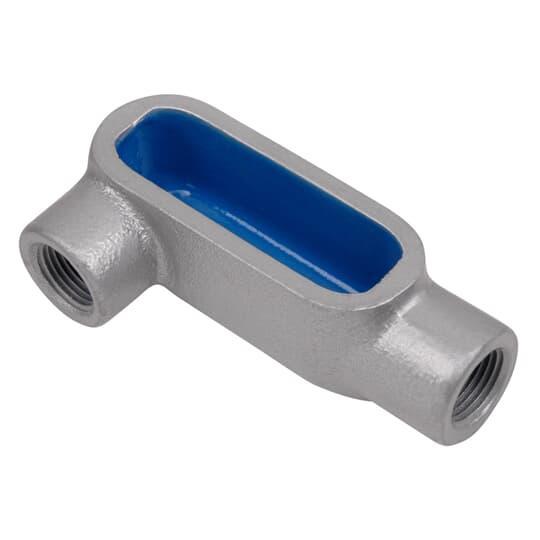

Thomas & Betts LR67-G Ocal OCAL-BLUE Conduit Body
Part Number # LR67-G
SKU # 2175608
$477.78 / Each
Typical price:$582.02 / Each
Thomas & Betts LR67-G Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | LR67-G |
| SKU #: | 2175608 |
| Capacity: | 51, 51 cu-in |
| Dimensions: | 8.3 in L x 4.25 in W x 3.2 in H |
| Finish: | PVC Coated |
| Form: | Form 7 |
| Hub Size: | 2, 2 in |
| Type: | Type LR |
| Color: | Dark gray |
| Connection type: | Thread, Threaded |
| Country of origin: | US |
| Material: | Iron |
| Mounting type: | Surface |
| Manufacturer Name: | ABB |
| UNSPSC: | 39131708 |
| UPC: | 00704508394257 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$477.78 / Each
Typical price:$582.02 / Each
Quantity:
Thomas & Betts LR67-G Ocal OCAL-BLUE Conduit Body
Brand: Thomas & Betts
Part Number: LR67-G
Ocal OCAL-BLUE Conduit Body, Type LR, 2 in Hub, 2 Hubs, 51 cu-in Capacity, Form 7 Form, Thread Connection, Surface Mounting, Iron, PVC Coated, Dark Gray, 8.3 in L x 4.25 in W x 3.2 in H Dimensions
Additional Description: TB -LR67-G COND BODY LR SHAPE FRM7 2IN DGRAY
Catalog Description: PVC Coated Conduit Body, LR Shape, Form 7, Size 2 Inch/53 Metric, Iron, Dark Gray
LR67-G Application
For pull outlets for conductors being installedLR67-G Item Features
- The conduit body and cover are double coated with a nominal 0.002 in blue urethane on both the interior and exterior, before PVC coating is applied
- A minimum of 0.04 in PVC coating is bonded to the exterior
- Covers are coated with a molded flange to seal the conduit body while the conduit body is molded with a flat surface on its opening to seal with the cover
- Ocal Pressure sealing sleeves on all threaded hubs
- Ocal conduit bodies are shipped with a cover and encapsulated stainless steel screws
- Bodies are designed with a flat back, allowing more cubic inch capacity
- The flat back also keeps the body more stable during installation, requiring fewer conduit straps
- Provide openings for making splices and taps in conductors
- Connect conduit sections
- Provide taps for branch conduit runs
- Make 90 deg bends in conduit runs
- Provide for access to conductors for maintenance and future system changes
LR67-G Standards
UL File No. E2969|CSA CertifiedSKU #2175608Part Number #LR67-GUNSPSC39131708UPC00704508394257
