Part Number # LR87
SKU # 2208158
Image Disclaimers Message
LR87

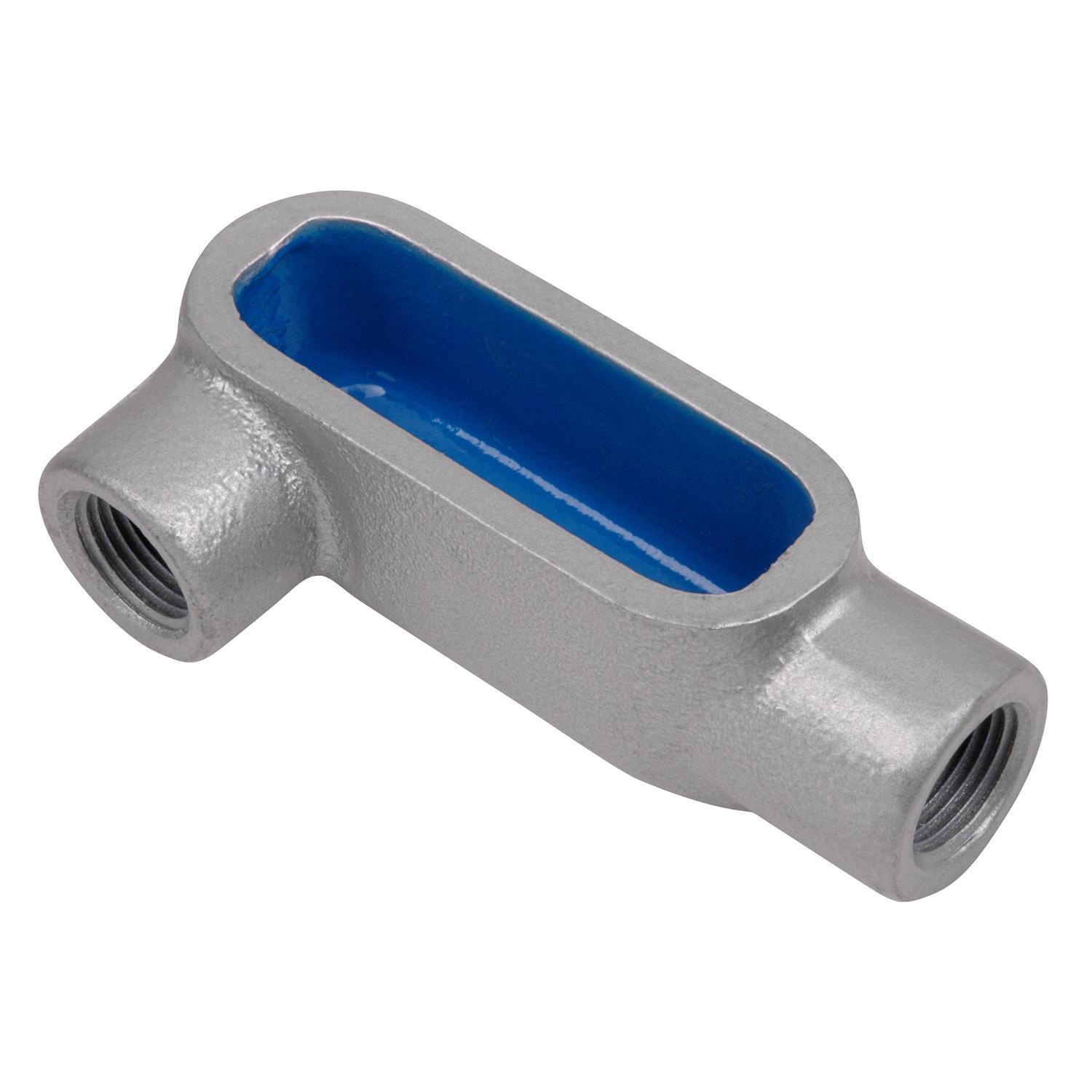

Thomas & Betts LR87 BlueKote Conduit Body
Part Number # LR87
SKU # 2208158
$378.60 / Each
Typical price:$507.32 / Each
Thomas & Betts LR87 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | LR87 |
| SKU #: | 2208158 |
| Capacity: | 132, 132 cu-in |
| Dimensions: | 10.55 in L x 5.8 in W x 4.4 in H |
| Finish: | Epoxy Powder Coated/Zinc Plated, Zinc Plated with Epoxy Powder Coated |
| Form: | Form 7 |
| Hub Size: | 3, 3 in |
| Type: | Type LR |
| Color: | Gray |
| Connection type: | Tapered NPT |
| Country of origin: | CN |
| Material: | Gray Iron, Iron |
| Manufacturer Name: | ABB |
| UNSPSC: | 39131708 |
| UPC: | 00786210934396 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$378.60 / Each
Typical price:$507.32 / Each
Quantity:
Thomas & Betts LR87 BlueKote Conduit Body
Brand: Thomas & Betts
Part Number: LR87
T&B BlueKote Conduit Body, Type LR, 3 in Hub, 2 Hubs, 132 cu-in Capacity, Form 7, Tapered NPT, Iron, Epoxy Powder Coated/Zinc Plated, Gray, 10.55 in L x 5.8 in W x 4.4 in H
Additional Description: TB -LR87 3 IN CONDUIT BODY,GRAY IRON,LR,F-7
Catalog Description: 3 Inch Form 7, LR Conduit Body, Body Material Gray Iron with Zinc Plating and Baked On Epoxy Powder Coat with BlueKote Internal Coating for Use with Rigid/IMC Conduit
LR87 Application
For rigid/IMC conduit, connect sections, act as pull outlets when conductors are being installed and provide easy access for splices in branch conductorsLR87 Item Features
- Bluekote Teflon based internal finish provides a slick, easy glide internal surface which significantly lowers the amount of force necessary to pull wires
- Eliminates rough internal surfaces that can cut into cable jacket, insulation and conductors during pulling and also reduces installation time and risk of installer strain
- Triple layer protection including two layers of epoxy coating which stops corrosion in its tracks
- Bodies are designed with a flat back, allowing more cubic inch capacity
- Conduit bodies make 90 deg bends in conduit runs, act as mounting outlets for wiring devices and lighting fixtures and to provide access to conductors for maintenance and future system changes
LR87 Standards
CSA Certified|UL File No. E2969SKU #2208158Part Number #LR87UNSPSC39131708UPC00786210934396
