Brand: Thomas & Betts
LU28SST-TB

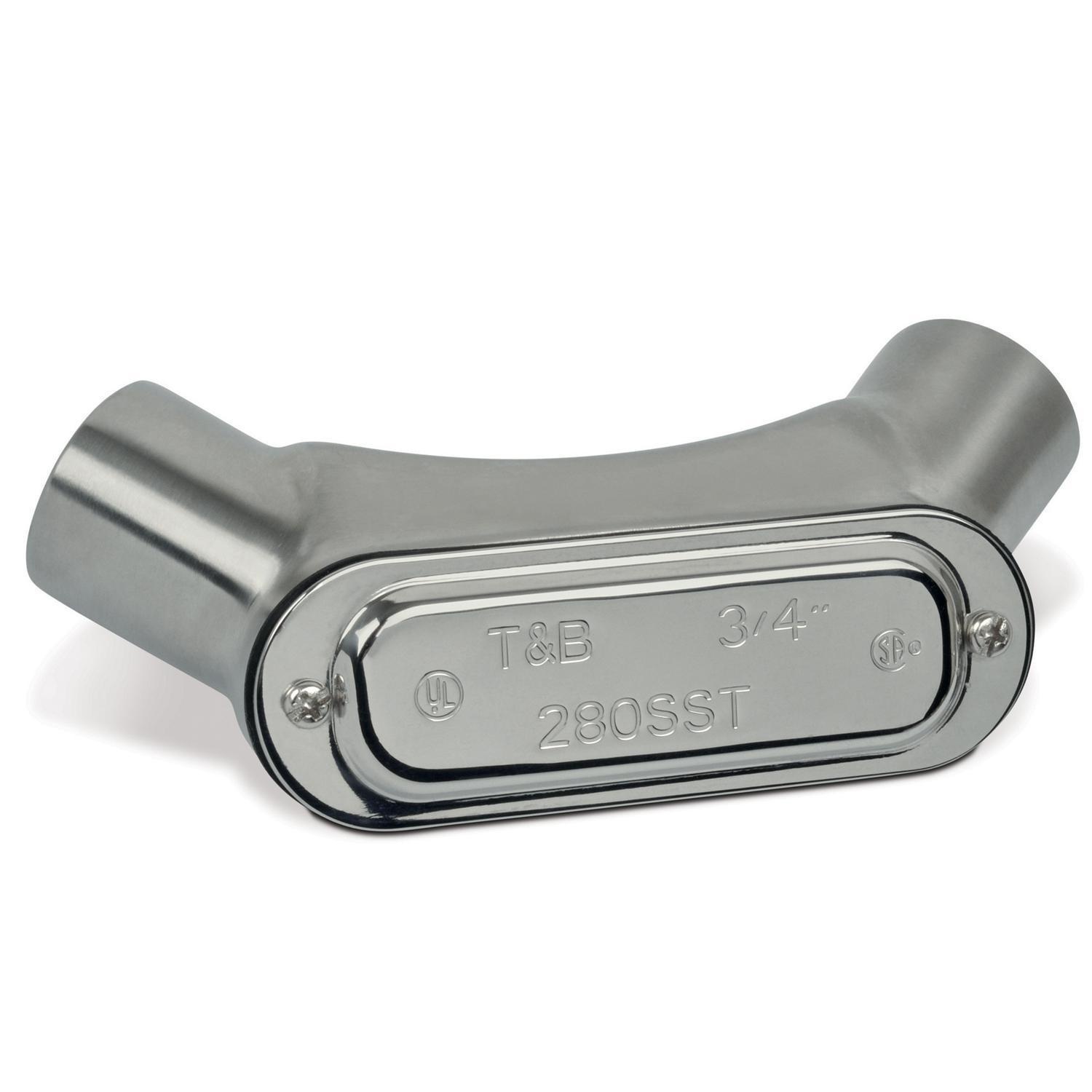

Thomas & Betts LU28SST-TB Elbow Conduit Body
Part Number # LU28SST-TB
SKU # 2401824
$313.75 / Each
Typical price:$420.42 / Each
Thomas & Betts LU28SST-TB Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | LU28SST-TB |
| SKU #: | 2401824 |
| Capacity: | 8-1/2 cu-in |
| Dimensions: | 6.981 in L x 1.645 in W |
| Finish: | Polished |
| Form: | Form 8 |
| Hub Size: | 3/4 in |
| Type: | Type LU Universal |
| Connection type: | NPT |
| Country of origin: | TH |
| Material: | 316 Stainless Steel |
| Manufacturer Name: | ABB |
| UNSPSC: | 39131708 |
| UPC: | 00786210223995 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$313.75 / Each
Typical price:$420.42 / Each
Quantity:
- T&B Elbow Conduit Body, Type LU Universal, 3/4 in Hub, 8-1/2 cu-in, Form 8, NPT, 316 Stainless Steel, Polished, 6.981 in L x 1.645 in W
LU28SST-TB Application
For connect conduit sections, provide easy access to conductors for maintenance and future system changesLU28SST-TB Item Features
- Marine-grade type 316 stainless steel construction in rugged form 8 design
- Radius is the same as bent conduit, so you can pull wire through the body
- Angled cover port enables easier wire pulling and uses standard covers
- Tapered (NPT) threads and integral bushings to protect wire insulation
- Rated for 40% wire fill
- Connect conduit sections
- Act as pull outlets when conductors are being installed
- Provide easy access for splices in branch conductors
- Make 90 deg bends in conduit runs
- Act as mounting outlets for wiring devices and light fixtures
- Provide access to conductors for maintenance and future system changes
LU28SST-TB Standards
CSA Certified|UL ListedSKU #2401824Part Number #LU28SST-TBUNSPSC39131708UPC00786210223995
