M250-38

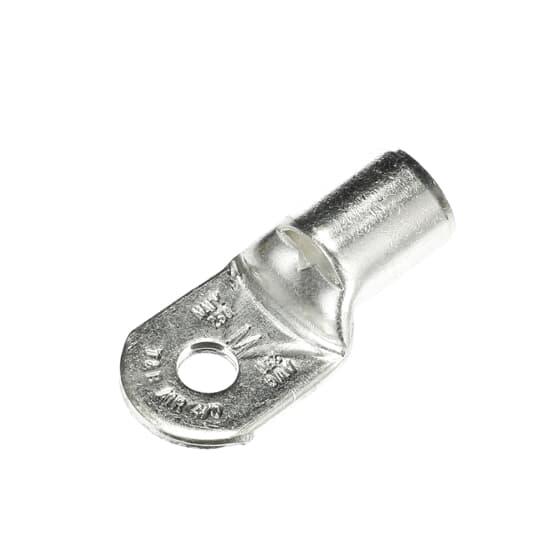

Thomas & Betts M250-38 Sta-Kon Ring Terminal
Part Number # M250-38
SKU # 2125611
$74.00 / 5Each
Thomas & Betts M250-38 Key Features
Brand: Thomas & Betts
Part Number # M250-38
SKU #2125611
Barrel Type: Tubular
Conductor Size: 250, 250 kcmil
Finish: TiN Coated
Series: M Series
Specifications: 0.65 in Clearance
Temperature Rating (Degrees F): 150, 150 deg C
Tongue Size: 1.12 in W x 0.04 in THK
Tongue Type: Ring
Type: Non-Insulated
Voltage Rating: 600, 600 VAC
Color: Metallic
Country of origin: MX
Length: 2.4, 2.4 in
Material: Copper
Manufacturer Name: ABB
UNSPSC: 39121432
UPC: 00786210803722
$74.00 / 5Each
SKU # 2125611
Part Number # M250-38
Thomas & Betts M250-38 Sta-Kon Ring Terminal
Brand: Thomas & Betts
Part Number: M250-38
Sta-Kon Ring Terminal, Non-Insulated, Series: M Series, 250 kcmil Conductor, 3/8 in Stud, 2.4 in Length, Tubular Barrel, Ring Tongue, 1.12 in W x 0.04 in THK Tongue, 600 VAC, 0.65 in Clearance, 150 deg C, Copper, Tin Coated, Metallic
Additional Description: TB -M250-38 NON-INS - TUB RING TERM, 250MCM, 3/ 3/8, ME 250MCM, 3/
Catalog Description: Non-Insulated Tubular Ring Terminal, Length 2.40 Inches, Width 1.12 Inches, Bolt Hole 3/8 Inch, Wire Range 4/0AN-250kcmil, Copper, Tin Plated, 5 Pack
M250-38 Application
For TBM6, TBM6S and WT3185 toolsM250-38 Item Features
- Non-insulated ring terminals are made of electrolytic copper for high conductivity/corrosion resistance
- Can be installed with crimping tools having a single indenter or double indenter (recommended for solid wire)
- Serrated barrel to increases grip-on wire
- 5 pieces/pack
M250-38 Standards
UL Listed|UL 94 V-0 Flammability Rated|CSA Certified|UL File No. E9809SKU #2125611Part Number #M250-38UNSPSC39121432UPC00786210803722
