Part Number # M25CLF020-6E2
SKU # 2399735
M25CLF020-6E2

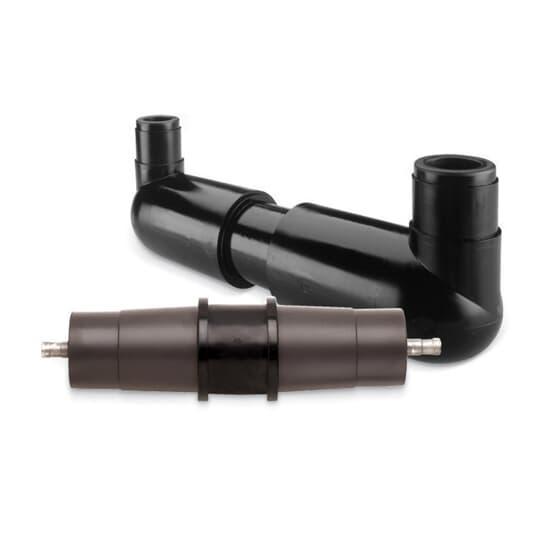

Thomas & Betts M25CLF020-6E2 Elastimold Current Limiting Fuse
Part Number # M25CLF020-6E2
SKU # 2399735
$4076.70 / Each
Typical price:$5462.78 / Each
Thomas & Betts M25CLF020-6E2 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | M25CLF020-6E2 |
| SKU #: | 2399735 |
| Amperage Rating: | 20 A |
| Type: | Encapsulated Molded |
| Material: | EPDM |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121626 |
| UPC: | 00783786976096 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$4076.70 / Each
Typical price:$5462.78 / Each
Quantity:
- Elastimold Current Limiting Fuse, Encapsulated Molded, 15.5 kV AC, 20 A, EPDM
M25CLF020-6E2 Application
For padmount, subsurface or vault installationsM25CLF020-6E2 Item Features
- EPDM molded rubber deadfront construction insulates, shields and eliminates exposed live parts
- Lightweight fuses are fully sealed and submersible
- Specially designed fuse elements with built-in low and high current interrupting capability provide full range fault current protection thru 50 kA
- Current limiting protection limits the system available fault current and dramatically reduces stresses on equipment
- Internal fuse shield prevents corona and deterioration of the fuse element
- Clip mounting
- 6E2 to 600 A elbow connector on one end and a 200 A bushing well on the other end
M25CLF020-6E2 Standards
ANSI C37.40, ANSI C37.41, ANSI C37.47, IEEE 386SKU #2399735Part Number #M25CLF020-6E2UNSPSC39121626UPC00783786976096
Image provided may only be a representation of final product and may include optional equipment
