M2D1210M-2

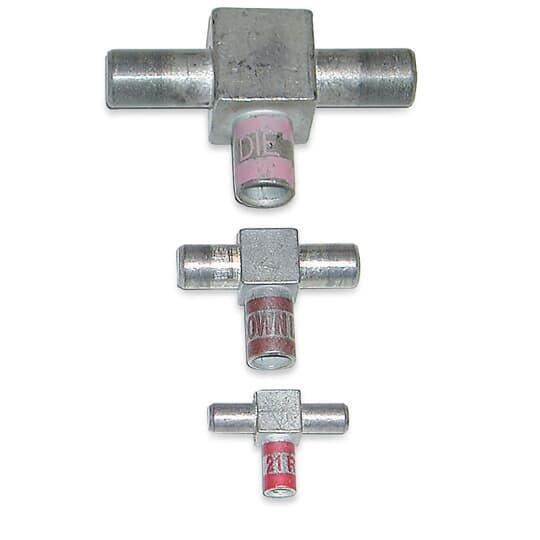

Thomas & Betts M2D1210M-2 Color-Keyed Kube Motor Lead Pigtail Disconnect
Part Number # M2D1210M-2
SKU # 239082
$286.34 / 6Each
Thomas & Betts M2D1210M-2 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | M2D1210M-2 |
| SKU #: | 239082 |
| Conductor Size: | 12 to 10, 12 to 10 AWG |
| Conductor Type: | Beryllium Copper |
| Dimensions: | 0.9 in L x 1.5 in W |
| Specifications: | Body Size 2, Tin Plated, Body Size 2, Tin Plated Finish |
| Type: | 2-Load Male |
| Color code: | Yellow |
| Country of origin: | MX |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121447 |
| UPC: | 00786210832067 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$286.34 / 6Each
Quantity:
- Color-Keyed Motor Lead Pigtail Disconnect, 2-Load Male, Beryllium Copper Conductor, 12 to 10 AWG Conductor, 600 V AC to 5 kV, 0.37 in Stud, Boot M2DBOOT2 Insulation, 3/8 in Strip Length, Specifications: Body Size 2, Tin Plated, Copper, Yellow Color Code, 0.9 in L x 1.5 in W
M2D1210M-2 Application
For 600 VAC and 5 kVAC applicationsM2D1210M-2 Item Features
- One line to two load (3-wire)
- Fast, snap together assembly offers maximum labor savings
- Not need for nuts, bolts and washers or insulating tape - simply slide on reusable boot
- Quick disconnect, no knife cutting of melted tape, eliminating the risk of accidental cutting of wire insulation, resulting motor downtime and installer exposure
- Meet or exceed electrical and mechanical performance of bolted connections
- Constructed of high conductivity copper with tin plated finish
- Color coded to match installing dies
- Quick, reliable change out of electric motors with no bolting, taping or loose connections
- Total assembly fits into tight motor housings
- 1000 VAC maximum in signs and fixtures
- KON-TOUR louvered contact bands
- Complete line of motor lead disconnects for 600 VAC and 5 kV applications, covering wire range from 16 to 4/0 AWG
M2D1210M-2 Standards
CSA Certified|UL File No. E9809SKU #239082Part Number #M2D1210M-2UNSPSC39121447UPC00786210832067
