M973U

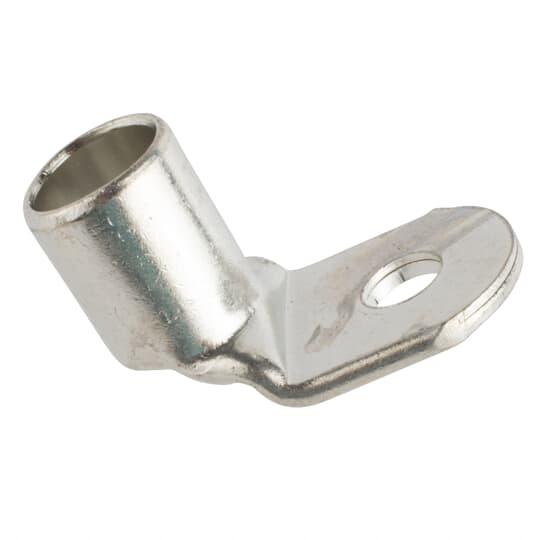

Thomas & Betts M973U Sta-Kon Ring Terminal
Part Number # M973U
SKU # 2190457
$445.00 / 50Each
Thomas & Betts M973U Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | M973U |
| SKU #: | 2190457 |
| Barrel Type: | Tubular |
| Conductor Size: | 4/0 AN AWG to 250 kcmil |
| Finish: | TiN Coated |
| Series: | M Series |
| Temperature Rating (Degrees F): | 150, 150 deg C |
| Tongue Size: | 1-1/8 in W x 0.07 in THK |
| Tongue Type: | Ring |
| Type: | 90 deg Bend Non-Insulated |
| Color: | Metallic |
| Country of origin: | MX |
| Length: | 2.4, 2.4 in |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121432 |
| UPC: | 00786210861395 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$445.00 / 50Each
Quantity:
- Sta-Kon Ring Terminal, 90 deg Bend Non-Insulated, Series: M Series, 4/0 AN AWG to 250 kcmil Conductor, 3/8 in Stud, 2.4 in Length, Tubular Barrel, Ring Tongue, 1-1/8 in W x 0.07 in THK Tongue, 600 V AC, 150 deg C, Copper, TiN Coated, Metallic
M973U Application
For TBM6, TBM6S, WT3185 and TBM6S toolsM973U Item Features
- These non-insulated ring terminals are made of electrolytic copper for high conductivity/corrosion resistance
- They can be installed with crimping tools having a single indenter or double indenter (recommended for solid wire)
- Serrated barrel to increases grip-on wire
M973U Standards
UL File No. E9809|UL 94 V-0 Flammability Rating|CSA Certified|UL File No. E9809SKU #2190457Part Number #M973UUNSPSC39121432UPC00786210861395
