Part Number # MCC50M10
SKU # 2310400
Image Disclaimers Message
Brand: Thomas & Betts
MCC50M10

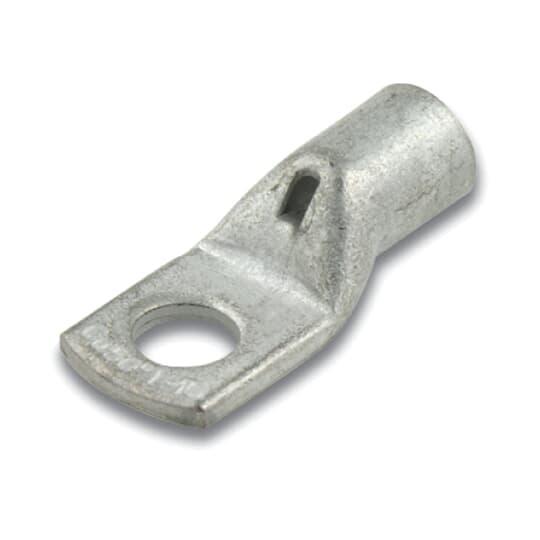

Thomas & Betts MCC50M10 Color-Keyed Compression Lug
Part Number # MCC50M10
SKU # 2310400
$409.67 / 50Each
Typical price:$548.95 / Each
Thomas & Betts MCC50M10 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | MCC50M10 |
| SKU #: | 2310400 |
| Barrel Size: | 10 mm Dia |
| Barrel Type: | Standard |
| Conductor Size: | 50, 50 sq-mm |
| Conductor Type: | Copper |
| Overall Length: | 46.5, 46.5 mm |
| Specifications: | Electro-Tin Plated |
| Temperature Rating (Degrees F): | 105, 105 deg C |
| Tongue Size: | 20 mm W |
| Tongue Type: | Straight |
| Type: | 1-Hole Metric, 1-Hole Metric Non-Insulated |
| Country of origin: | IT |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121405 |
| UPC: | 00786210957715 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$409.67 / 50Each
Typical price:$548.95 / Each
Quantity:
- Color-Keyed Compression Lug, 1-Hole Metric Non-Insulated, Copper Conductor, 50 sq-mm Conductor, 35 kV, M10 Stud, Straight Tongue, 20 mm W Tongue, 46.5 mm Overall Length, Standard Barrel, 10 mm Dia Barrel, Specifications: Electro-Tin Plated, 105 deg C, Copper
MCC50M10 Item Features
- Manufactured from seamless copper tubing that conforms to BS2781 with heavy duty wall thickness, achieving maximum conductivity with low resistance
- Electro-tin plated for corrosion resistance, chamfered barrels provide ease of strand entry and inspection hole facilitates full insertion of the conductor
- Cable area clearly identified on lug
- Peep hole
MCC50M10 Standards
CE Certified|UL File No. E9809SKU #2310400Part Number #MCC50M10UNSPSC39121405UPC00786210957715
