MD6F-1

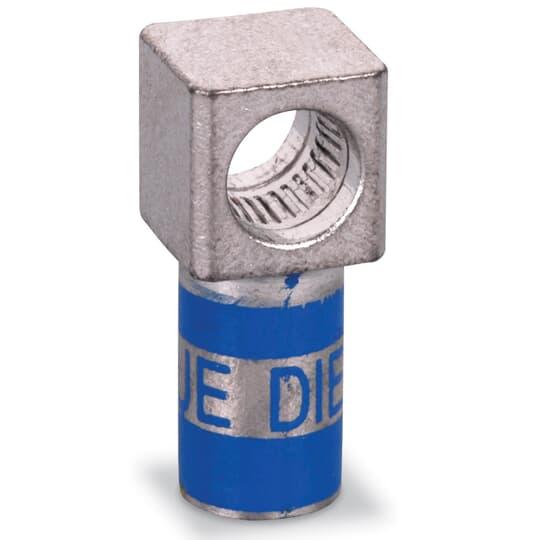

Thomas & Betts MD6F-1 Color-Keyed Kube Motor Lead Pigtail Disconnect
Part Number # MD6F-1
SKU # 931189
$272.73 / 10Each
Thomas & Betts MD6F-1 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | MD6F-1 |
| SKU #: | 931189 |
| Conductor Size: | 6, 6 AWG |
| Conductor Type: | Beryllium Copper |
| Dimensions: | 0.88 in L x 0.38 in W |
| Mounting Hole Size: | 1/4, 1/4 in |
| Specifications: | Body Size 1, Tin Plated, Body Size 1, Tin Plated Finish |
| Type: | 1-Load Female |
| Color code: | Blue |
| Country of origin: | MX |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121447 |
| UPC: | 00786210786834 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$272.73 / 10Each
Quantity:
- Color-Keyed Motor Lead Pigtail Disconnect, 1-Load Female, Beryllium Copper Conductor, 6 AWG Conductor, Die Code: 24, 600 V AC to 5 kV, Boot MDBOOT1 Insulation, 1/2 in Strip Length, Specifications: Body Size 1, Tin Plated, 1/4 in Mounting Hole, Copper, Blue Color Code, 0.88 in L x 0.38 in W
MD6F-1 Application
For 600 VAC and 5 kVAC applicationsMD6F-1 Item Features
- One line to one load (2-wire)
- Fast, snap together assembly offers maximum labor savings
- Not need for nuts, bolts and washers or insulating tape - simply slide on reusable boot
- Quick disconnect, no knife cutting of melted tape, eliminating the risk of accidental cutting of wire insulation, resulting motor downtime and installer exposure
- Meet or exceed electrical and mechanical performance of bolted connections
- Constructed of high conductivity copper with tin plated finish
- Thermoplastic elastomer insulator
- Quick, reliable change out of electric motors with no bolting, taping or loose connections
- Total assembly fits into tight motor housings
- Female disconnects equipped with beryllium copper interface band for dependable connections
MD6F-1 Standards
CSA Certified|UL File No. E9809SKU #931189Part Number #MD6F-1UNSPSC39121447UPC00786210786834
