Brand: Thomas & Betts

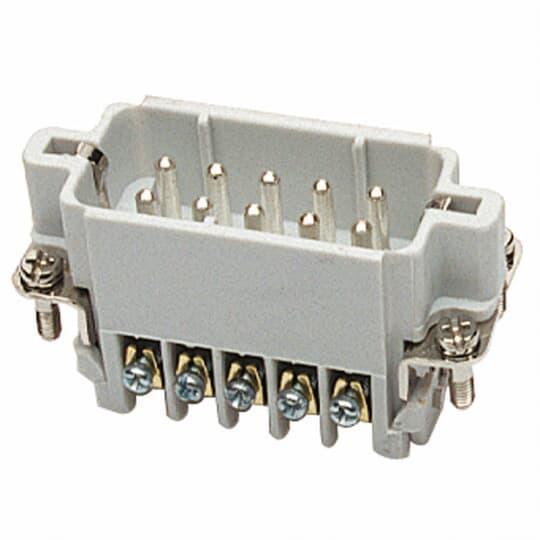

Thomas & Betts MS232A Pos-E-Kon Terminal Insert
Image Disclaimers Message
Brand: Thomas & Betts
Thomas & Betts MS232A Pos-E-Kon Terminal Insert
Brand: Thomas & Betts
Thomas & Betts MS232A Pos-E-Kon Terminal Insert
Part #:MS232A
SKU #: 39590
$56.79/EA
Key Features
Part #:MS232A
SKU #: 39590
Brand: Thomas & Betts
Number of Positions: 32
Series: A Series
Specifications: 10/16 A, 600 VAC
Suitable For Use With: A Series Connector
Temperature Rating (Degrees F): -40 to 257, -40 to 257 deg F
$56.79/EA
- 32 contacts with ground
- Integral screw terminal contacts that provide for easy terminal wiring and fast assembly
- Standard wire protection saddles prevent cutting of strands during assembly
- Small, compact size screw terminal
- Use small blade screwdriver to push wire entry tab in for easy contact removal
Specifications
Brand: Thomas & Betts
Number of Positions: 32
Series: A Series
Specifications: 10/16 A, 600 VAC
Suitable For Use With: A Series Connector
Temperature Rating (Degrees F): -40 to 257, -40 to 257 deg F
Type: Compact
Wire Size: 20 to 14, 20 to 14 AWG
Connection type: Male Screw
Country of origin: DE
Material: Glass Filled Thermoplastic
Manufacturer Name: ABB
UNSPSC: 39121410
UPC: 00786210791234
Thomas & Betts MS232A Pos-E-Kon Terminal Insert
Pos-E-Kon Terminal Insert, Compact, Series: A Series, 32 Positions, 20 to 14 AWG Wire, Male Screw Connection, For Use With: A Series Connector, -40 to 257 deg F, Specifications: 10/16 A, 600 VAC, Glass Filled Thermoplastic
Additional Description: TB -MS232A MA SCR TERM INSERT A SERIES 32CNT
Catalog Description: Male screw terminal insert. For use with A series, 32 contacts with ground.
Item Features
Item FeaturesCSA 57696000|UL 94 V-0 Flammability Rated
