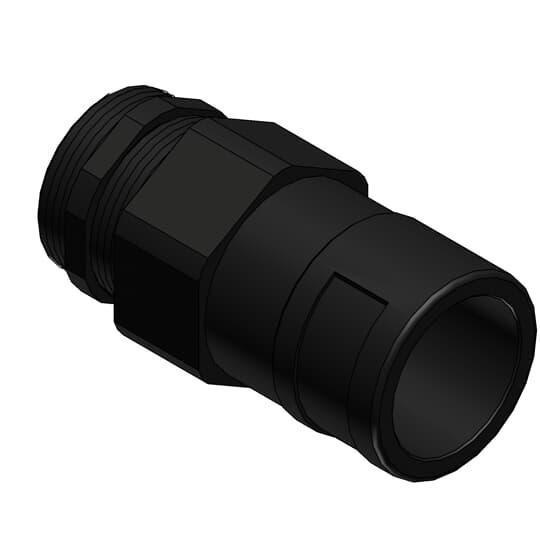

Thomas & Betts NVNV-M323-13 PMA PMAFIX Conduit Connector
Part Number # NVNV-M323-13
SKU # 2239573
Thomas & Betts NVNV-M323-13 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | NVNV-M323-13 |
| SKU #: | 2239573 |
| Dimensions: | 56 mm L |
| Suitable For Use With: | PMAFLEX®, PMAFLEX® Pro and PMA Smart Line Nylon Flexible Conduit, PMAFLEX�, PMAFLEX� Pro and PMA Smart Line Nylon Flexible Conduit |
| Trade Size: | NW23 |
| Type: | Reinforced Straight |
| Country of origin: | CH |
| Diameter: | 24 mm ID x 43 mm OD |
| Material: | Polyamide 6 |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121311 |
| UPC: | 00786209963987 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts NVNV-M323-13 PMA PMAFIX Conduit Connector
Brand: Thomas & Betts
Part Number: NVNV-M323-13
PMA PMAFIX Conduit Connector, Reinforced Straight, NW23 Trade, 24 mm ID x 43 mm OD Diameter, For Use With: PMAFLEX , PMAFLEX Pro and PMA Smart Line Nylon Flexible Conduit, Polyamide 6, Black, 56 mm L Dimensions
Additional Description: TB -NVNV-M323-13 (N) FTNG STR M32NW23 PA6/BR 13 IP68 BLK
Catalog Description: PMAFIX Straight Black Connector with Metric Threads, Connector Material - Polyamide 6, Thread Material - Nickel Plated Brass, Thread Size - M32x1.5, Thread Length - 13, Conduit Size NW - 23
NVNV-M323-13 Application
For heavy machine and railway vehicle construction sectors where increased demands are made of the system propertiesNVNV-M323-13 Item Features
- Very high impact resistance
- High thread and system connection strength
- Vibrationproof connection to PMAFLEX conduits
- Easy assembly, high conduit pullout strength, very good chemical properties, polyamide-free from halogens and cadmium, excellent impact strength
- Fits fine (T) and coarse (G) conduit profiles
- M32x1.5 thread size
- -40 to 105 deg C operating temperature, 160 deg C short temperature
- IP68/IP69K insulation class
- 13 mm L thread
- Nickel plated brass thread
- https://youtu.be/Zv9PPHIButo
NVNV-M323-13 Standards
CSA Certified|UL ListedSKU #2239573Part Number #NVNV-M323-13UNSPSC39121311UPC00786209963987
