Thomas & Betts OB 44
Thomas & Betts OB 44
Part #:OB44
SKU #: 2432141
$1190.00/250EA
Key Features
Part #:OB44
SKU #: 2432141
Brand: Thomas & Betts
Conductor Type: ACSR/Solid/Stranded Aluminum/Copper
Dimensions: 1-7/8 in L
Finish: Bare
Specifications: 0.162 to 0.332 in Dia Conductor Main/Tap, O Die Code
Tap Size: 6 to 1 AWG
$1190.00/250EA
- Made of 1350 aluminum alloy for high strength and high conductivity
- Standard compression tools and dies install all sizes no special tools needed
- Field proven ribbed design enables excellent connector/conductor contact without distorting the conductor shape
- Fold-in tabs provide tab interlock as tool closes
- Prefilled with oxide inhibitor held captive in the rib/connection area
- Compression/crimp connection
Specifications
Brand: Thomas & Betts
Conductor Type: ACSR/Solid/Stranded Aluminum/Copper
Dimensions: 1-7/8 in L
Finish: Bare
Specifications: 0.162 to 0.332 in Dia Conductor Main/Tap, O Die Code
Tap Size: 6 to 1 AWG
Total Taps: 2
Country of origin: MX
Material: Aluminum
Manufacturer Name: ABB
UNSPSC: 39121409
UPC: 00783786740512
Thomas & Betts OB 44

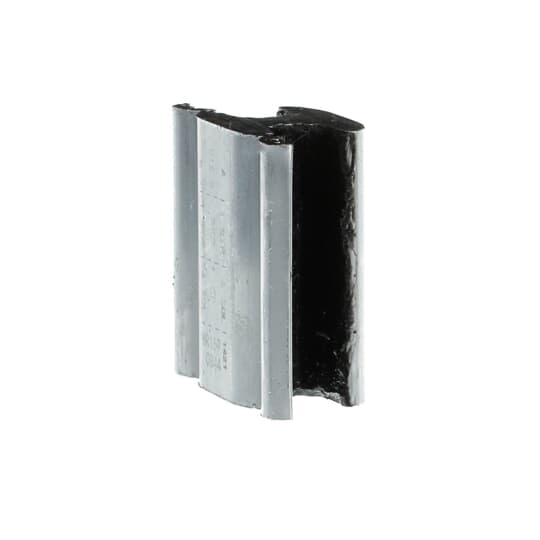

Homac® Compression H-Tap Connector, Wide Range, H, 2 Total Taps, 6 to 1 AWG Main/Run, 6 to 1 AWG Tap, ACSR/Solid/Stranded Conductor, O Die Code, 0.162 to 0.332 in Dia Conductor Main/Tap, Aluminum, Bare, 1-7/8 in L
Additional Description: TB -OB44 (N) AL H-TYPE COMP CONN 1-7/16IN DIE-O NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Aluminum H-Tap Compression Connectors, length 1-7/16 inch, die O. 1 connector
Item FeaturesFor service drop
Item Features
Item FeaturesANSI C199.4
