Part Number # PA02
SKU # 2461449
PA02
Thomas & Betts PA02
Part Number # PA02
SKU # 2461449
$992.43 / 25Each
Typical price:$1329.85 / Each
Thomas & Betts PA02 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | PA02 |
| SKU #: | 2461449 |
| Barrel Length: | 1-11/32 in |
| Conductor Size: | 2 AWG |
| Dimensions: | 2.22 in L |
| Series: | PA Series |
| Specifications: | #4 Stud Size, 0.64 in OD, 90 deg C Operating Temperature, Tin Plated |
| Type: | Straight |
| Color code: | Orange |
| Country of origin: | US |
| Material: | Aluminum |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121405 |
| UPC: | 00783786134021 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$992.43 / 25Each
Typical price:$1329.85 / Each
Quantity:

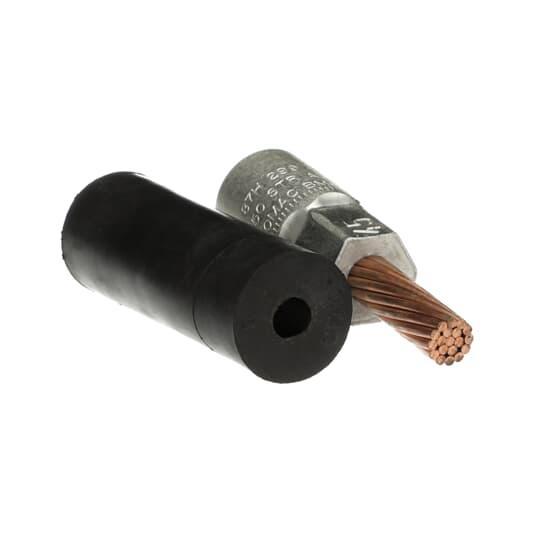

- Color-Keyed Pin Adapter Terminal, Straight, Series: PA Series, 2 AWG Conductor, Die Code: 50, Orange Color Code, 7/8 in Pin Length, 1-11/32 in Barrel Length, Specifications: #4 Stud Size, 0.64 in OD, 90 deg C Operating Temperature, Tin Plated, Aluminum, 2.22 in L
PA02 Includes
Insulating CoverPA02 Item Features
- Connector for aluminum conductor only
- Pigtail may be inserted into either aluminum or copper connectors
- Aluminum barrel prefilled with oxide inhibitor and capped
- Long barrel
PA02 Standards
UL E63167 / UL E63167SKU #2461449Part Number #PA02UNSPSC39121405UPC00783786134021
Image provided may only be a representation of final product and may include optional equipment
