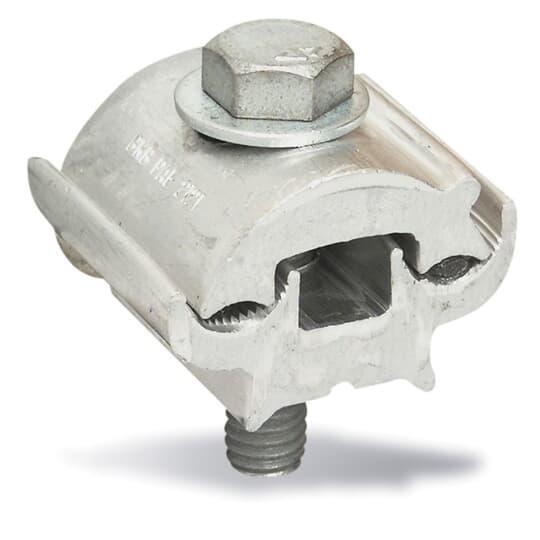

Thomas & Betts PAE3921-9-2 Blackburn Parallel Groove Clamp
Part Number # PAE3921-9-2
SKU # 2399713
$1961.00 / 100Each
Typical price:$2628.00 / Each
Thomas & Betts PAE3921-9-2 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | PAE3921-9-2 |
| SKU #: | 2399713 |
| Conductor Type: | ACSR/Aluminum/Copper/Solid/Stranded |
| Dimensions: | 1-5/8 in L x 2-1/4 in W x 2-9/16 in H |
| Specifications: | 3/4 in Bolt Head, 0.464 to 0.743 in Dia Conductor Main, 0.162 to 0.414 in Dia Conductor Tap |
| Tap Size: | 6 to 2/0 AWG |
| Type: | 2-Conductor Type PAE Dual Rated Extruded |
| Country of origin: | MX |
| Material: | Aluminum |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121449 |
| UPC: | 00783786163175 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1961.00 / 100Each
Typical price:$2628.00 / Each
Quantity:
- Blackburn Parallel Groove Clamp, 2-Conductor Type PAE Dual Rated Extruded, ACSR/Aluminum/Copper/Solid/Stranded Conductor, 397.5 kcmil to 3/0 AWG Main/Run, 6 to 2/0 AWG Tap, 1/2 in Bolt, Specifications: 3/4 in Bolt Head, 0.464 to 0.743 in Dia Conductor Main, 0.162 to 0.414 in Dia Conductor Tap, Aluminum, 1-5/8 in L x 2-1/4 in W x 2-9/16 in H Dimensions
PAE3921-9-2 Application
For securing conductor applicationsPAE3921-9-2 Item Features
- Galvanized steel hardware provides high-strength for heavy duty applications
- Can be installed with live line tools you already have
- Dual-rated for aluminum to copper connections
- All seasons environmental conditions
- Prefilled with oxide-inhibitor to prevent oxidation on copper-to-aluminum connections
- 1/2-13 UNC galvanized steel bolt thread size
- 1/2-13 UNC aluminum bolt thread size
- 397.5 kcmil ACSR to 3/0 AWG stranded, 6 to 2/0 AWG AR main conductor range
- 2/0 AWG stranded to 6 AWG solid, 6 AWG AR tap conductor range
- Bolted connection
