Part Number # RA18-14F
SKU # 45425
Image provided may only be a representation of
final product and may include optional equipment
RA18-14F

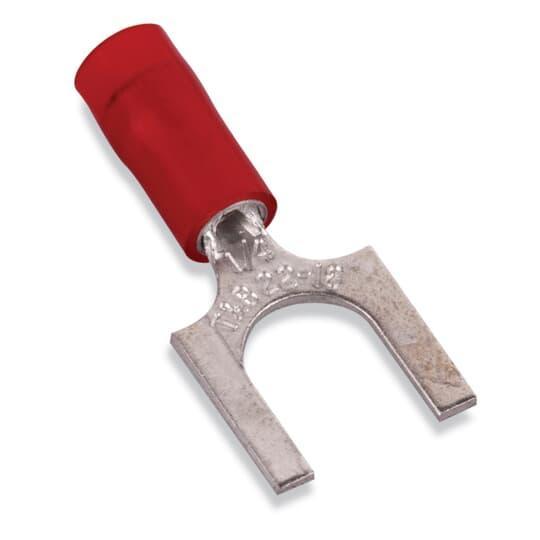

Thomas & Betts RA18-14F Sta-Kon Fork Terminal
Part Number # RA18-14F
SKU # 45425
Thomas & Betts RA18-14F Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | RA18-14F |
| SKU #: | 45425 |
| Barrel Type: | Brazed Seam/Serrated |
| Conductor Size: | 22 to 16, 22 to 16 AWG |
| Finish: | Electroplated Tin |
| Series: | RA Series |
| Specifications: | 0.136 in Dia Maximum Insulation, 0.31 in Clearance, Nylon Insulation |
| Temperature Rating (Degrees F): | 105, 105 deg C |
| Tongue Size: | 0.44 in W x 0.02 in THK |
| Tongue Type: | Fork |
| Type: | Insulated |
| Country of origin: | US |
| Length: | 0.95, 0.95 in |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121432 |
| UPC: | 00786210803951 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts RA18-14F Sta-Kon Fork Terminal
Brand: Thomas & Betts
Part Number: RA18-14F
Sta-Kon Fork Terminal, Insulated, Series: RA Series, 22 to 16 AWG Conductor, 1/4 in Stud, 0.95 in Length, Brazed Seam/Serrated Barrel, Fork Tongue, 0.44 in W x 0.02 in THK Tongue, 600 VAC, Specifications: 0.136 in Dia Maximum Insulation, 0.31 in Clearance, Nylon Insulation, 105 deg C, Copper, Electroplated Tin, Red
Additional Description: TB -RA18-14F INS NY FORK TRM 22-16 BLT HOLE1/4IN RED
Catalog Description: Nylon Insulated Fork Terminal, Length .95 Inches, Width .44 Inches, Maximum Insulation .136, Bolt Hole 1/4 Inch, Wire Range #22-#16 AWG, Color Red, Copper, Tin Plated
RA18-14F Item Features
- Nylon insulated with inner bronze insulation grip sleeve lengthens flex radius of conductor and eliminates conductor creep
- Brazed seam barrel is serrated for high pull-out value
- Nylon jacket is Color coded
- WT112M, WT145C, WT2000, ERG4001, ERG4003 recommended tools
RA18-14F Standards
CSA Certified|UL 94 V-2 Flammability Rated|UL File No. E9809SKU #45425Part Number #RA18-14FUNSPSC39121432UPC00786210803951
