Part Number # RA18-38
SKU # 39664

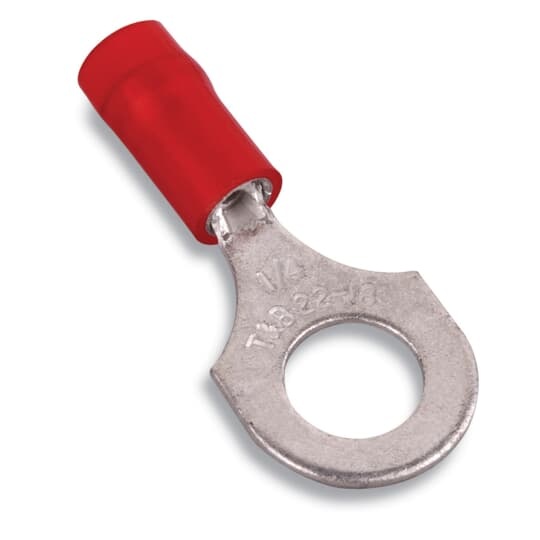

Image provided may only be a representation of
final product and may include optional equipment
RA18-38
Thomas & Betts RA18-38 Sta-Kon Ring Terminal
Part Number # RA18-38
SKU # 39664
Thomas & Betts RA18-38 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | RA18-38 |
| SKU #: | 39664 |
| Barrel Type: | Insulation Grip Sleeve |
| Conductor Size: | 22 to 16, 22 to 16 AWG |
| Finish: | TiN Coated |
| Series: | RA Series |
| Specifications: | 0.136 in Dia Maximum Insulation, 0.35 in Clearance, Nylon Insulation |
| Temperature Rating (Degrees F): | 105, 105 deg C |
| Tongue Size: | 0.53 in W x 0.03 in THK |
| Tongue Type: | Ring |
| Type: | Insulated |
| Country of origin: | US |
| Length: | 1.2, 1.2 in |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121432 |
| UPC: | 00786210803968 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts RA18-38 Sta-Kon Ring Terminal
Brand: Thomas & Betts
Part Number: RA18-38
Sta-Kon Ring Terminal, Insulated, Series: RA Series, 22 to 16 AWG Conductor, 3/8 in Stud, 1.2 in Length, Insulation Grip Sleeve Barrel, Ring Tongue, 0.53 in W x 0.03 in THK Tongue, 600 VAC, 0.136 in Dia Maximum Insulation, 0.35 in Clearance, Nylon Insulation, 105 deg C, Copper, Tin Coated, Red
Additional Description: TB -RA18-38 INS NYL RING TERM 22-16 BLT 3/8 RED
Catalog Description: Nylon Insulated Ring Terminal, Length 1.20 Inches, Width .53 Inches, Maximum Insulation .136, Bolt Hole 3/8 Inch, Wire Range #22-#16 AWG, Color Red, Tin Plated
RA18-38 Application
For WT2000, WT112M, WT145C, ERG4001, ERG4003 and WT145A toolsRA18-38 Item Features
- Self-insulated with high dielectric strength nylon sleeves
- An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep
- Made of copper and has electro-tin plating for high conductivity/corrosion resistance
- 100 pieces/pack
RA18-38 Standards
UL Listed|UL 94 V-2 Flammability Rated|CSA Certified|UL File No. E9809SKU #39664Part Number #RA18-38UNSPSC39121432UPC00786210803968
