Part Number # RA2573M
SKU # 39683

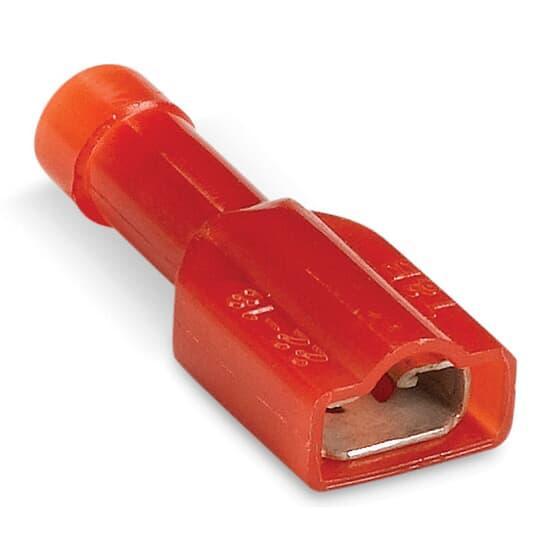

Image provided may only be a representation of
final product and may include optional equipment
RA2573M
Thomas & Betts RA2573M Sta-Kon Female Disconnect
Part Number # RA2573M
SKU # 39683
Thomas & Betts RA2573M Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | RA2573M |
| SKU #: | 39683 |
| Barrel Type: | Brazed Seam |
| Conductor Size: | 22 to 18, 22 to 18 AWG |
| Dimensions: | 1.01 in L x 0.38 in W |
| Finish: | Electroplated Tin |
| Insulated: | Fully Insulated |
| Series: | 250 |
| Specifications: | 0.165 in Dia Maximum Insulation, 0.03 in THK Stock |
| Temperature Rating (Degrees F): | 105, 105 deg C |
| Terminal Type: | Crimp |
| Country of origin: | US |
| Material: | Brass |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121447 |
| UPC: | 00786210873022 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts RA2573M Sta-Kon Female Disconnect
Brand: Thomas & Betts
Part Number: RA2573M
Sta-Kon Female Disconnect, Series: 250, 22 to 18 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Brazed Seam Barrel, Crimp Terminal, 600 VAC, 0.165 in Dia Maximum Insulation, 0.03 in THK Stock, 105 deg C, Brass, Red, Electroplated Tin, 1.01 in L x 0.38 in W, Insulated: Fully Insulated
Additional Description: TB -RA2573M NYL FLLY INS FEM DSC 22-18 250 MYLA NON-CANCELABLE/NON-RETURNABLE
Catalog Description: Nylon Fully Insulated Female Disconnect, Length 1.01 Inches, Width .38 Inches, Maximum Insulation .165, Tab Size .250x.032, Wire Range #22-18 AWG, Color Red, Brass, Tin Plated, On Mylar Tape, 1,000 Pack
RA2573M Item Features
- Nylon fully insulated
- Unique construction of the female disconnect offers long term dependability
- Funnel entry insulators enable easier inserting of wire into barrel
- Brazed seam serrated barrel provides maximum tensile strength
- Suitable for use with WT145C, WT2000, WT112M, ERG4001, ERG4003, 12050 tools
- Color-coded for easy installation
RA2573M Standards
UL E66716 / UL E66716SKU #39683Part Number #RA2573MUNSPSC39121447UPC00786210873022
