RA484

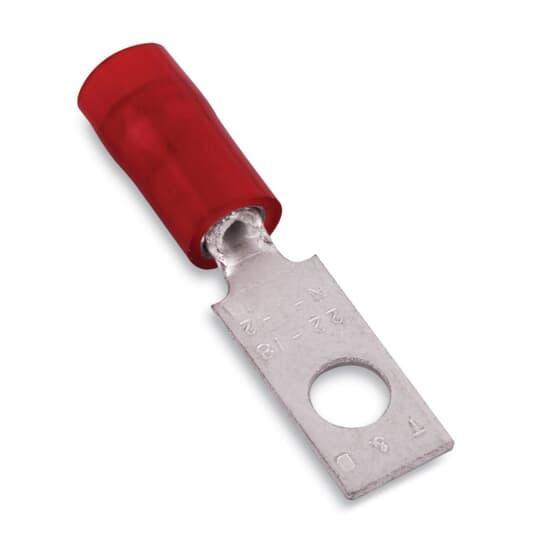

Thomas & Betts RA484 Sta-Kon Ring Terminal
Part Number # RA484
SKU # 2319924
Thomas & Betts RA484 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | RA484 |
| SKU #: | 2319924 |
| Barrel Type: | Brazed/Overlapped Seam |
| Conductor Size: | 22 to 18, 22 to 18 AWG |
| Finish: | TiN Coated |
| Series: | RA Series |
| Specifications: | 0.4 in Clearance, Nylon Insulation |
| Temperature Rating (Degrees F): | 105, 105 deg C |
| Tongue Size: | 0.237 in W x 0.03 in THK |
| Tongue Type: | Rectangle, Rectangular |
| Type: | Insulated |
| Country of origin: | US |
| Length: | 1.015, 1.015 in |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121432 |
| UPC: | 00786210817149 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts RA484 Sta-Kon Ring Terminal
Brand: Thomas & Betts
Part Number: RA484
Sta-Kon Ring Terminal, Insulated, Series: RA Series, 22 to 18 AWG Conductor, #6 Stud, 1.015 in Length, Brazed/Overlapped Seam Barrel, Rectangle Tongue, 0.237 in W x 0.03 in THK Tongue, 600 VAC, Specifications: 0.4 in Clearance, Nylon Insulation, 105 deg C, Copper, Tin Coated, Red
Additional Description: TB -RA484 INS NYL RECT RNG TERM 16-14 NO6 RED
Catalog Description: Nylon Insulated Rectangular Ring Terminal, Length 1.015 Inches, Width .237 Inches, Bolt Hole #6, Wire Range #22-#18 AWG, Color Red, Copper, Tin Plated
RA484 Application
For ERG4001 and WT145C tool applicationsRA484 Item Features
- Funneled barrel entry
- Deep internal serrations
- Made of copper and has electro-tin plating for corrosion-resistance
- 1000 pieces/pack
RA484 Standards
UL Listed|UL 94 V-2 Flammability Rated|UL File No. E9809|CSA CertifiedSKU #2319924Part Number #RA484UNSPSC39121432UPC00786210817149
