RA857

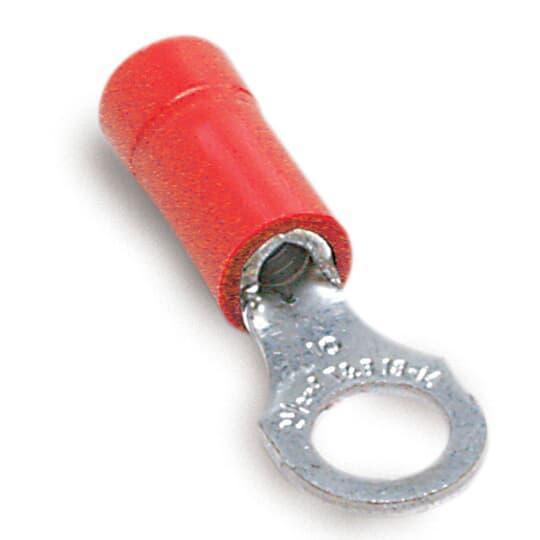

Thomas & Betts RA857 Sta-Kon Ring Terminal
Part Number # RA857
SKU # 39699
$306.00 / 1000Each
Thomas & Betts RA857 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | RA857 |
| SKU #: | 39699 |
| Barrel Type: | Brazed Seam |
| Conductor Size: | 22 to 16, 22 to 16 AWG |
| Finish: | TiN Coated |
| Series: | RA Series |
| Specifications: | 0.15 in Dia Maximum Insulation, 0.27 in Clearance, Vinyl Insulation |
| Temperature Rating (Degrees F): | 105, 105 deg C |
| Tongue Size: | 0.25 in W x 0.03 in THK |
| Tongue Type: | Ring |
| Type: | Insulated |
| Color: | Red |
| Country of origin: | US |
| Length: | 0.94, 0.94 in |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121432 |
| UPC: | 00786210817408 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$306.00 / 1000Each
Quantity:
- Sta-Kon Ring Terminal, Insulated, Series: RA Series, 22 to 16 AWG Conductor, #6 Stud, 0.94 in Length, Brazed Seam Barrel, Ring Tongue, 0.25 in W x 0.03 in THK Tongue, 600 V AC, 0.15 in Dia Maximum Insulation, 0.27 in Clearance, Vinyl Insulation, 105 deg C, Copper, Tin Coated, Red
RA857 Application
For WT145C, WT2000, WT112M, ERG4001 and ERG4003 toolsRA857 Item Features
- Terminals are Self-insulated with a PVC insulation sleeve of extra length to give protection and relieve bending stress at wire flex point
- Brazed seam barrel that is serrated to obtain high pullout value
- Made of copper and has electro-tin plating for corrosion-resistance
- 1000 pieces/pack
RA857 Standards
UL E9809 / UL E9809SKU #39699Part Number #RA857UNSPSC39121432UPC00786210817408
