Part Number # RA863
SKU # 39701
Image Disclaimers Message
Brand: Thomas & Betts
RA863

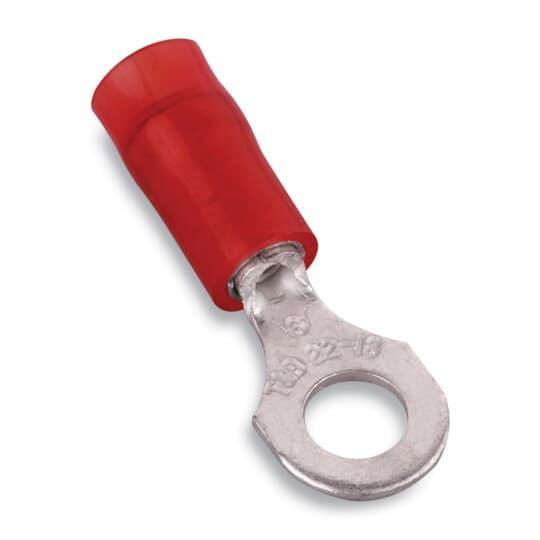

Thomas & Betts RA863 Sta-Kon Ring Terminal
Part Number # RA863
SKU # 39701
$509.30 / 1000Each
Thomas & Betts RA863 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | RA863 |
| SKU #: | 39701 |
| Barrel Type: | Insulation Grip Sleeve |
| Conductor Size: | 22 to 16, 22 to 16 AWG |
| Finish: | TiN Coated |
| Series: | RA Series |
| Specifications: | 0.136 in Dia Maximum Insulation, 1/4 in Clearance, Nylon Insulation |
| Temperature Rating (Degrees F): | 105, 105 deg C |
| Tongue Size: | 0.26 in W x 0.03 in THK |
| Tongue Type: | Ring |
| Type: | Insulated |
| Color: | Red |
| Country of origin: | US |
| Length: | 0.89, 0.89 in |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121432 |
| UPC: | 00786210817439 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$509.30 / 1000Each
Quantity:
- Sta-Kon Ring Terminal, Insulated, Series: RA Series, 22 to 16 AWG Conductor, #8 Stud, 0.89 in Length, Insulation Grip Sleeve Barrel, Ring Tongue, 0.26 in W x 0.03 in THK Tongue, 600 V AC, 0.136 in Dia Maximum Insulation, 1/4 in Clearance, Nylon Insulation, 105 deg C, Copper, Tin Coated, Red
RA863 Application
For WT2000, WT112M, WT145C, ERG4001, ERG4003 and WT145A toolsRA863 Item Features
- Self-insulated with high dielectric strength nylon sleeves
- An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep
- Made of copper and has electro-tin plating for high conductivity/corrosion resistance
- 1000 pieces/pack
RA863 Standards
UL E9809 / UL E9809SKU #39701Part Number #RA863UNSPSC39121432UPC00786210817439
