Part Number # RAD18-183
SKU # 39713

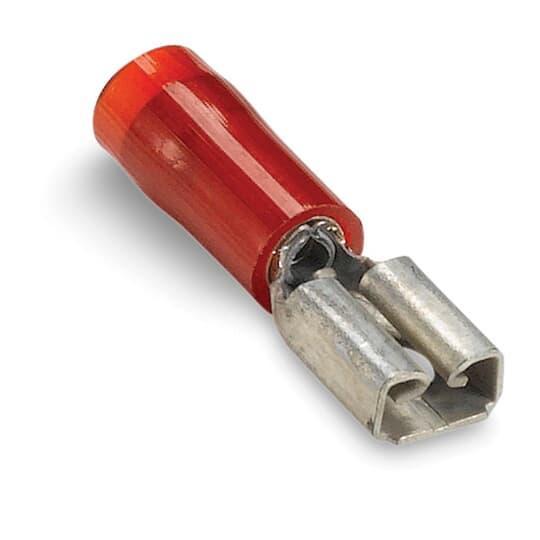

Image provided may only be a representation of
final product and may include optional equipment
RAD18-183
Thomas & Betts RAD18-183 Sta-Kon Female Disconnect
Part Number # RAD18-183
SKU # 39713
Thomas & Betts RAD18-183 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | RAD18-183 |
| SKU #: | 39713 |
| Barrel Type: | Internal Serration Long |
| Conductor Size: | 22 to 18, 22 to 18 AWG |
| Dimensions: | 0.83 in L x 0.23 in W |
| Finish: | Electroplated Tin |
| Insulated: | Insulated |
| Series: | 187 |
| Specifications: | 0.136 in Dia Maximum Insulation, 0.03 in THK Stock |
| Temperature Rating (Degrees F): | 105, 105 deg C |
| Terminal Type: | Crimp |
| Country of origin: | US |
| Material: | Brass |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121447 |
| UPC: | 00786210814551 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts RAD18-183 Sta-Kon Female Disconnect
Brand: Thomas & Betts
Part Number: RAD18-183
Sta-Kon Female Disconnect, Series: 187, 22 to 18 AWG Conductor, 0.187 in W x 0.032 in THK Tab, Internal Serration Long Barrel, Crimp Terminal, 600 VAC, 0.136 in Dia Maximum Insulation, 0.03 in THK Stock, 105 deg C, Brass, Red, Electroplated Tin, 0.83 in L x 0.23 in W, Insulated: Insulated
Additional Description: TB -RAD18-183 INS NY FEM 187 DISC 22-18 LEN .83 .83, TAB
Catalog Description: Nylon Insulated Female Disconnect, Length .83 Inches, Width .23 Inches, Maximum Insulation .136, Tab Size .187x.032, Wire Range #22-#18 AWG, Color Red, Copper, Tin Plated
RAD18-183 Item Features
- Nylon insulated
- Unique construction of the female disconnect offers long term dependability
- Funnel entry insulators enable easier inserting of wire into barrel
- Internal barrel serrations and long barrel provide for maximum tensile strength
- Suitable for use with WT145C, WT2000, WT112M, ERG4001, ERG4003, ERG4001 tools
- Color-coded for easy installation
- Quick, reliable method of connection to terminal blocks and boards without the use of tools
RAD18-183 Standards
UL E66716 / UL E66716SKU #39713Part Number #RAD18-183UNSPSC39121447UPC00786210814551
