RAD1823M

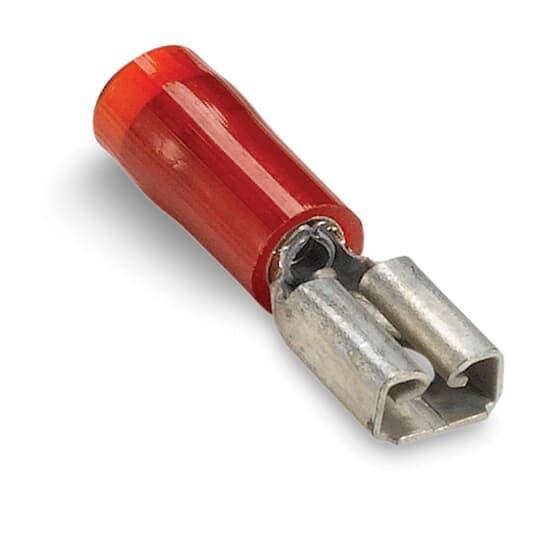

Thomas & Betts RAD1823M Sta-Kon Female Disconnect
Part Number # RAD1823M
SKU # 39715
Thomas & Betts RAD1823M Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | RAD1823M |
| SKU #: | 39715 |
| Barrel Type: | Funnel Entry/Internal Serration/Long, Internal Serration Long |
| Conductor Size: | 22 to 18, 22 to 18 AWG |
| Dimensions: | 0.83 in L x 0.23 in W |
| Finish: | Tin Plated |
| Insulated: | Insulated |
| Series: | 187 |
| Specifications: | 0.136 in Dia Maximum Insulation, 0.136 in Dia Nylon Insulation |
| Temperature Rating (Degrees F): | 105, 105 deg C |
| Terminal Type: | Crimp |
| Color: | Red |
| Country of origin: | US |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121447 |
| UPC: | 00786210850313 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts RAD1823M Sta-Kon Female Disconnect
Brand: Thomas & Betts
Part Number: RAD1823M
Spec-Kon Female Disconnect, 22 to 18 AWG Conductor, 0.187 in W x 0.02 in THK Tab, Funnel Entry/Internal Serration/Long Barrel, Crimp Terminal, 300 kV, Specifications: 0.136 in Dia Nylon Insulation, 105 deg C, Copper, Red, Tin Plated, 0.83 in L x 0.23 in W, Insulated
Additional Description: TB -RAD1823M (N) INSUL NY FEM 187 DISC 22-18 MYLAR
Catalog Description: Nylon Insulated Female Disconnect, Length .83 Inches, Width .23 Inches, Maximum Insulation .136, Tab Size .187x.020, Wire Range #22-#18 AWG, Color Red, Copper, Tin Plated, On Mylar Tape, 1,000 Pack
RAD1823M Item Features
- Nylon insulated
- Unique construction of the female disconnect offers long term dependability
- Funnel entry insulators enable easier inserting of wire into barrel
- Internal barrel serrations and long barrel provide for maximum tensile strength
- Suitable for use with WT145C, WT2000, WT112M, ERG4001, ERG4003 tools
- Color-coded for easy installation
- Quick, reliable method of connection to terminal blocks and boards without the use of tools
RAD1823M Standards
CSA Certified|UL ListedSKU #39715Part Number #RAD1823MUNSPSC39121447UPC00786210850313
