RAX63

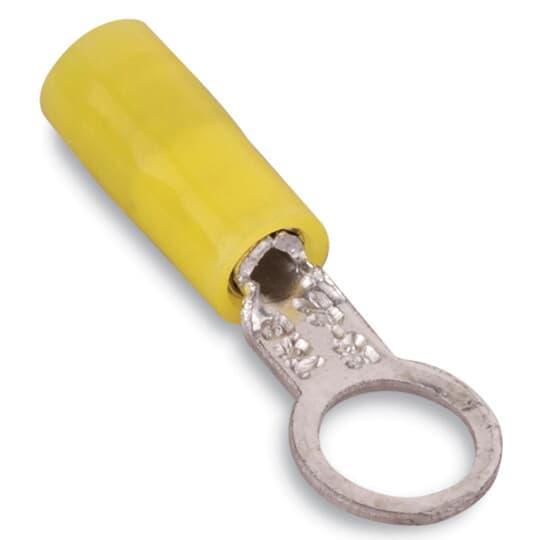

Thomas & Betts RAX63 Sta-Kon Ring Terminal
Part Number # RAX63
SKU # 396568
$1742.10 / 1000Each
Thomas & Betts RAX63 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | RAX63 |
| SKU #: | 396568 |
| Barrel Type: | Insulation Grip Sleeve |
| Conductor Size: | 26 to 24, 26 to 24 AWG |
| Finish: | TiN Coated |
| Series: | RA Series |
| Specifications: | 1/8 in Dia Maximum Insulation, Nylon Insulation |
| Temperature Rating (Degrees F): | 105, 105 deg C |
| Tongue Size: | 0.25 in W x 0.02 in THK |
| Tongue Type: | Ring |
| Type: | Insulated |
| Color: | Yellow |
| Country of origin: | US |
| Length: | 0.84, 0.84 in |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121432 |
| UPC: | 00786210818016 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1742.10 / 1000Each
Quantity:
- Sta-Kon Ring Terminal, Insulated, Series: RA Series, 26 to 24 AWG Conductor, #6 Stud, 0.84 in Length, Insulation Grip Sleeve Barrel, Ring Tongue, 0.25 in W x 0.02 in THK Tongue, 600 V AC, 1/8 in Dia Maximum Insulation, Nylon Insulation, 105 deg C, Copper, Tin Coated, Yellow
RAX63 Item Features
- Self-insulated with high dielectric strength nylon sleeves
- An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep
- EC001052 solderless copper terminals for copper conductors
- Include extra metal sleeve to grip insulation
- Can be installed with crimping tools having a single indenter or double indenter (recommended for solid wire)
- Wire range identification on the tongue of each terminal
- Constructed of electrolytic copper for high conductivity
