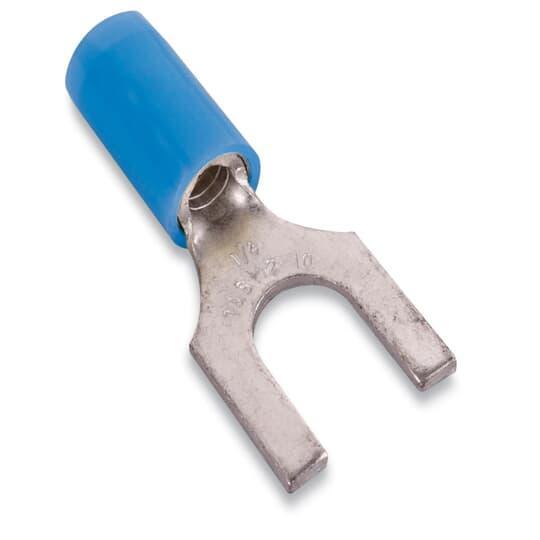

Thomas & Betts RB1113 Sta-Kon Fork Terminal
Thomas & Betts RB1113 Sta-Kon Fork Terminal
Part #:RB1113
SKU #: 39720
Key Features
Part #:RB1113
SKU #: 39720
Brand: Thomas & Betts
Barrel Type: Brazed Seam/Serrated
Conductor Size: 18 to 14, 18 to 14 AWG
Finish: Electroplated Tin
Series: RB Series
Specifications: 0.162 in Dia Maximum Insulation, 1/4 in Clearance, Nylon Insulation
- Nylon insulated with inner bronze insulation grip sleeve lengthens flex radius of conductor and eliminates conductor creep
- Brazed seam barrel is serrated for high pull-out value
- Nylon jacket is Color coded
- WT112M, WT145A, WT145C, WT2000, ERG4001, ERG4003 recommended tools
Thomas & Betts RB1113 Sta-Kon Fork Terminal
Sta-Kon Fork Terminal, Insulated, Series: RB Series, 18 to 14 AWG Conductor, #6 Stud, 0.87 in Length, Brazed Seam/Serrated Barrel, Fork Tongue, 0.31 in W x 0.03 in THK Tongue, 600 VAC, Specifications: 0.162 in Dia Maximum Insulation, 1/4 in Clearance, Nylon Insulation, 105 deg C, Copper, Electroplated Tin, Blue
Additional Description: TB -RB1113 INS NYL FORK TERM 18-14 BH No6 BLUE
Catalog Description: Nylon Insulated Fork Terminal, Length .87 Inches, Width .31 Inches, Maximum Insulation .162, Bolt Hole #6, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated
