RB1124

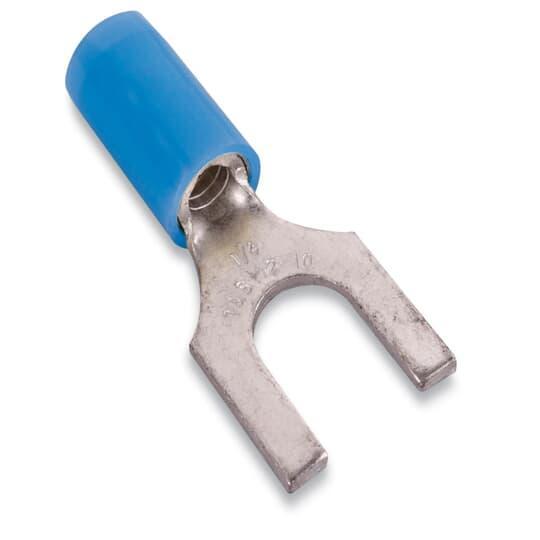

Thomas & Betts RB1124 Electrical Terminal
Part Number # RB1124
SKU # 2333786
Thomas & Betts RB1124 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | RB1124 |
| SKU #: | 2333786 |
| Barrel Type: | Brazed Seam/Serrated |
| Conductor Size: | 18 to 14, 18 to 14 AWG |
| Finish: | Tin Plated |
| Specifications: | 1/4 in Clearance, 0.19 in Dia Maximum Insulation |
| Temperature Rating (Degrees F): | 105 deg C, 221 |
| Tongue Size: | 0.31 in W, 0.31 in W x 0.03 in THK |
| Tongue Type: | Fork |
| Type: | Insulated |
| Color: | Blue |
| Country of origin: | US |
| Length: | 0.95, 0.95 in |
| Material: | Copper, Copper/Nylon |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121432 |
| UPC: | 00786210819082 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts RB1124 Electrical Terminal
Brand: Thomas & Betts
Part Number: RB1124
Sta-Kon Fork Terminal, Insulated, 18 to 14 AWG Conductor, #8 Stud, 0.95 in Length, Brazed Seam/Serrated Barrel, Fork Tongue, 0.31 in W x 0.03 in THK Tongue, 600 V, Specifications: 1/4 in Clearance, 0.19 in Dia Maximum Insulation, 105 deg C, Copper/Nylon, Tin Plated, Blue
Additional Description: TB -RB1124 (N) INS NYL FORK TERM 18-14 BH No8 BLUE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Nylon Insulated Fork Terminal, Length .95 Inches, Width .31 Inches, Maximum Insulation .190, Bolt Hole #8, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated
RB1124 Item Features
- Inner bronze insulation grip sleeve lengthens flex radius of conductor and eliminates conductor creep
- Nylon jacket is color-coded
- Brazed seam barrel is serrated for high pull-out value
- Terminal is high conductivity electrolytic copper, electro tin plated
- Insulation is color-coded
RB1124 Standards
CSA Certified|UL File No. E9809|MIL-T-10727 Type I|UL 94 V-2 Flammability RatingSKU #2333786Part Number #RB1124UNSPSC39121432UPC00786210819082
