Part Number # RB14-111F
SKU # 39738
Image provided may only be a representation of
final product and may include optional equipment
RB14-111F

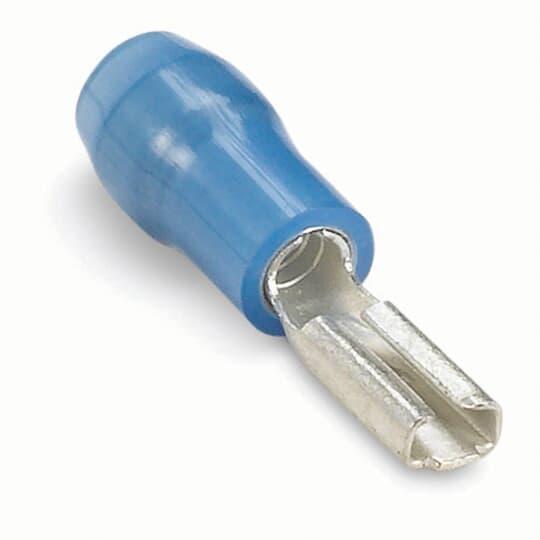

Thomas & Betts RB14-111F Sta-Kon Female Disconnect
Part Number # RB14-111F
SKU # 39738
Thomas & Betts RB14-111F Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | RB14-111F |
| SKU #: | 39738 |
| Conductor Size: | 16 to 14, 16 to 14 AWG |
| Dimensions: | 0.75 in L x 0.15 in W |
| Finish: | Electroplated Tin |
| Insulated: | Insulated |
| Series: | 110 |
| Specifications: | 0.135 in Dia Maximum Insulation |
| Temperature Rating (Degrees F): | 105, 105 deg C |
| Terminal Type: | Crimp |
| Country of origin: | US |
| Material: | Brass |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121447 |
| UPC: | 00786210802305 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts RB14-111F Sta-Kon Female Disconnect
Brand: Thomas & Betts
Part Number: RB14-111F
Sta-Kon Female Disconnect, Series: 110, 16 to 14 AWG Conductor, 0.11 in W x 0.02 in THK Tab, Crimp Terminal, 600 VAC, 0.135 in Dia Maximum Insulation, 105 deg C, Brass, Blue, Electroplated Tin, 0.75 in L x 0.15 in W, Insulated: Insulated
Additional Description: TB -RB14-111F INSUL NYL FEM 110 DISCONN 16-14 AWG .75,
Catalog Description: Nylon Insulated Female Disconnect, Length .75 Inches, Width 0.15, Maximum Insulation .135, Tab Size .110x.020, Wire Range #16-#14 AWG, Color Blue, Copper, Tin Plated, 100 Pack
RB14-111F Item Features
- Nylon insulated to offer enhanced protection against short circuit current
- It is made of brass with electro-tin plated finish to offer enhanced resistance against corrosion and long term dependability
- Suitable for use with ERG4006 tool
- Disconnect has a voltage rating of 600 V to provide enhanced performance
RB14-111F Standards
UL 94 V-0 Flammability RatingSKU #39738Part Number #RB14-111FUNSPSC39121447UPC00786210802305
