Brand: Thomas & Betts
RB14-8F

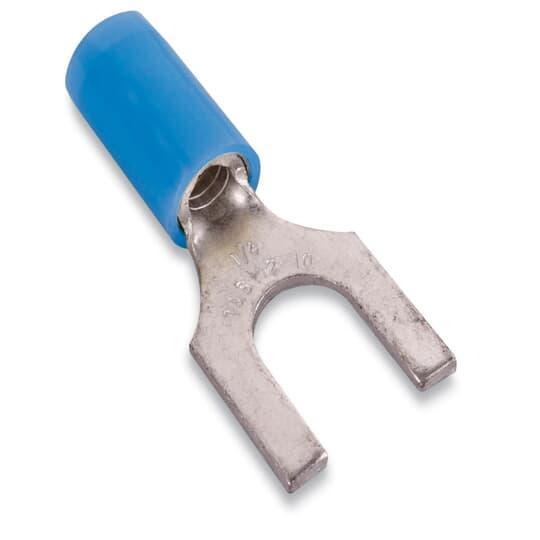

Thomas & Betts RB14-8F Sta-Kon Fork Terminal
Part Number # RB14-8F
SKU # 39756
$140.81 / 100Each
Typical price:$188.70 / Each
Thomas & Betts RB14-8F Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | RB14-8F |
| SKU #: | 39756 |
| Barrel Type: | Brazed Seam/Serrated |
| Conductor Size: | 18 to 14 AWG |
| Finish: | Electroplated Tin |
| Series: | RB Series |
| Specifications: | 0.162 in Dia Maximum Insulation, 1/4 in Clearance, Nylon Insulation |
| Temperature Rating (Degrees F): | 105 deg C |
| Tongue Size: | 0.31 in W x 0.03 in THK |
| Tongue Type: | Fork |
| Type: | Insulated |
| Color: | Blue |
| Country of origin: | US |
| Length: | 0.87 in |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121432 |
| UPC: | 00786210804088 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$140.81 / 100Each
Typical price:$188.70 / Each
Quantity:
- Sta-Kon Fork Terminal, Insulated, Series: RB Series, 18 to 14 AWG Conductor, #8 Stud, 0.87 in Length, Brazed Seam/Serrated Barrel, Fork Tongue, 0.31 in W x 0.03 in THK Tongue, 600 V AC, Specifications: 0.162 in Dia Maximum Insulation, 1/4 in Clearance, Nylon Insulation, 105 deg C, Copper, Electroplated Tin, Blue
RB14-8F Item Features
- Nylon insulated with inner bronze insulation grip sleeve lengthens flex radius of conductor and eliminates conductor creep
- Brazed seam barrel is serrated for high pull-out value
- Nylon jacket is Color coded
- WT112M, WT145A, WT145C, WT2000, ERG4001, ERG4003 recommended tools
RB14-8F Standards
UL E9809 / UL E9809SKU #39756Part Number #RB14-8FUNSPSC39121432UPC00786210804088
