Part Number # RB2207-200M
SKU # 39760
Image Disclaimers Message
RB2207-200M

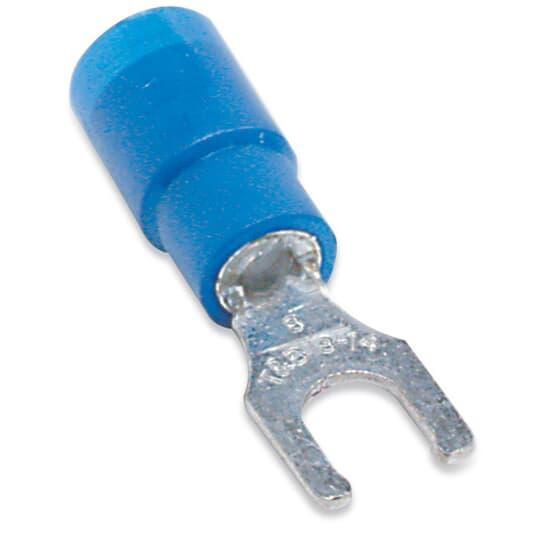

Thomas & Betts RB2207-200M Sta-Kon Fork Terminal
Part Number # RB2207-200M
SKU # 39760
$435.10 / 1000Each
Thomas & Betts RB2207-200M Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | RB2207-200M |
| SKU #: | 39760 |
| Barrel Type: | Brazed Seam/Serrated |
| Conductor Size: | 18 to 14, 18 to 14 AWG |
| Finish: | Electroplated Tin |
| Series: | RB Series |
| Specifications: | 0.2 in Dia Maximum Insulation, 0.27 in Clearance, Vinyl Insulation |
| Temperature Rating (Degrees F): | 105, 105 deg C |
| Tongue Size: | 0.31 in W x 0.03 in THK |
| Tongue Type: | Locking Fork |
| Type: | Expanded Insulated |
| Color: | Blue |
| Country of origin: | US |
| Length: | 0.97, 0.97 in |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121432 |
| UPC: | 00786210862699 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$435.10 / 1000Each
Quantity:
- Sta-Kon Fork Terminal, Expanded Insulated, Series: RB Series, 18 to 14 AWG Conductor, #6 Stud, 0.97 in Length, Brazed Seam/Serrated Barrel, Locking Fork Tongue, 0.31 in W x 0.03 in THK Tongue, 600 V AC, Specifications: 0.2 in Dia Maximum Insulation, 0.27 in Clearance, Vinyl Insulation, 105 deg C, Copper, Electroplated Tin, Blue
RB2207-200M Item Features
- Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring
- Brazed seam barrel is serrated for high pull-out value
- Insulation is Color coded
- WT112M, WT145C, WT2000, ERG4001, ERG4003 recommended tools
- On mylar tape
RB2207-200M Standards
CSA Certified|UL 94 V-0 Flammability Rated|UL File No. E9809SKU #39760Part Number #RB2207-200MUNSPSC39121432UPC00786210862699
