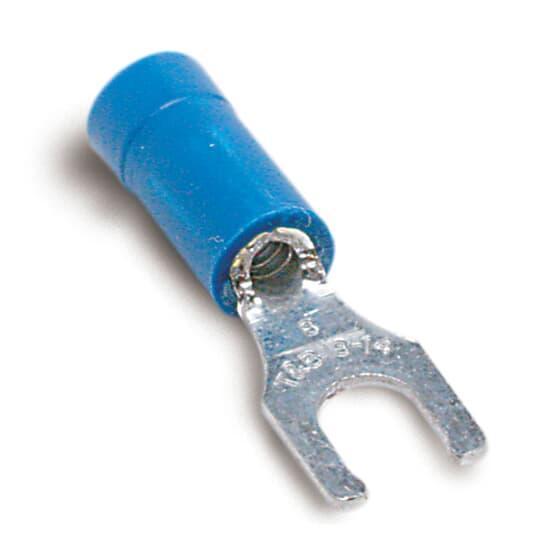

Thomas & Betts RB2207 Sta-Kon Fork Terminal
Part Number # RB2207
SKU # 39758
Thomas & Betts RB2207 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | RB2207 |
| SKU #: | 39758 |
| Barrel Type: | Brazed Seam/Serrated |
| Conductor Size: | 18 to 14, 18 to 14 AWG |
| Finish: | Electroplated Tin |
| Specifications: | 0.17 in Dia Maximum Insulation, 0.27 in Clearance, Vinyl Insulation |
| Tongue Size: | 0.25 in W x 0.03 in THK |
| Tongue Type: | Locking Fork |
| Length: | 0.97, 0.97 in |
| UNSPSC: | 39121432 |
| UPC: | 00786210819419 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts RB2207 Sta-Kon Fork Terminal
Brand: Thomas & Betts
Part Number: RB2207
Sta-Kon Fork Terminal, Insulated, Series: RB Series, 18 to 14 AWG Conductor, #6 Stud, 0.97 in Length, Brazed Seam/Serrated Barrel, Locking Fork Tongue, 0.25 in W x 0.03 in THK Tongue, 600 VAC, Specifications: 0.17 in Dia Maximum Insulation, 0.27 in Clearance, Vinyl Insulation, 105 deg C, Copper, Electroplated Tin, Blue
Additional Description: TB -RB2207 INSVIN LKG FORK TERM 18-14 BOLT NO6 BLUE
Catalog Description: Vinyl Insulated Locking Fork Terminal, Length .97 Inches, Width .25 Inches, Maximum Insulation .170, Bolt Hole #6, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated, 1,000 Pack
RB2207 Item Features
- Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring
- Brazed seam barrel is serrated for high pull-out value
- Insulation is Color coded
- WT112M, WT145C, WT2000, ERG4001, ERG4003 recommended tools
RB2207 Standards
UL E9809 / UL E9809SKU #39758Part Number #RB2207UNSPSC39121432UPC00786210819419
Image provided may only be a representation of final product and may include optional equipment
