Part Number # RB2257-200M
SKU # 39772
Image Disclaimers Message
RB2257-200M

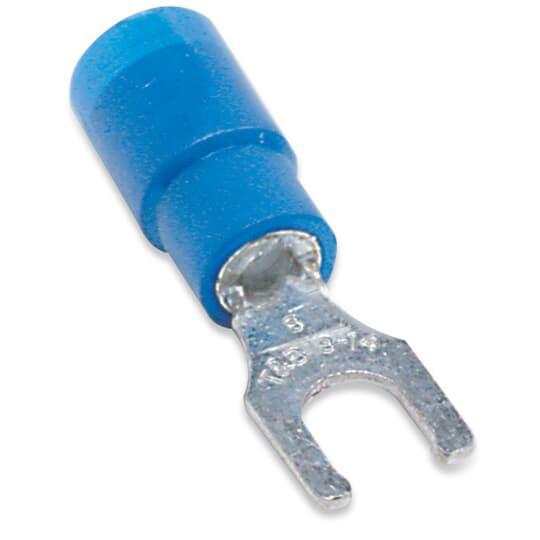

Thomas & Betts RB2257-200M Sta-Kon Fork Terminal
Part Number # RB2257-200M
SKU # 39772
$548.80 / 1000Each
Thomas & Betts RB2257-200M Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | RB2257-200M |
| SKU #: | 39772 |
| Barrel Type: | Brazed Seam/Serrated |
| Conductor Size: | 18 to 14, 18 to 14 AWG |
| Finish: | Electro-Plated Tin |
| Series: | RB Series |
| Specifications: | 0.2 in Dia Vinyl Insulation, 0.27 in Clearance |
| Temperature Rating (Degrees F): | 105, 105 deg C |
| Tongue Size: | 0.31 in W x 0.03 in THK |
| Tongue Type: | Locking Fork/Ring |
| Type: | Expanded |
| Color: | Blue |
| Country of origin: | US |
| Length: | 0.97, 0.97 in |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121432 |
| UPC: | 00786210862743 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$548.80 / 1000Each
Quantity:
- Sta-Kon Fork Terminal, Expanded, Series: RB Series, 18 to 14 AWG Conductor, #10 Stud, 0.97 in Length, Brazed Seam/Serrated Barrel, Locking Fork/Ring Tongue, 0.31 in W x 0.03 in THK Tongue, 600 V AC, 0.2 in Dia Vinyl Insulation, 0.27 in Clearance, 105 deg C, Copper, Electro-Plated Tin, Blue
RB2257-200M Item Features
- Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring
- Brazed seam barrel is serrated for high pull out value
- Insulation is color coded
- On mylar tape
RB2257-200M Standards
CSA Certified|UL 94 V-0 Flammability Rated|UL E9809SKU #39772Part Number #RB2257-200MUNSPSC39121432UPC00786210862743
