Part Number # RB257M
SKU # 39783
RB257M

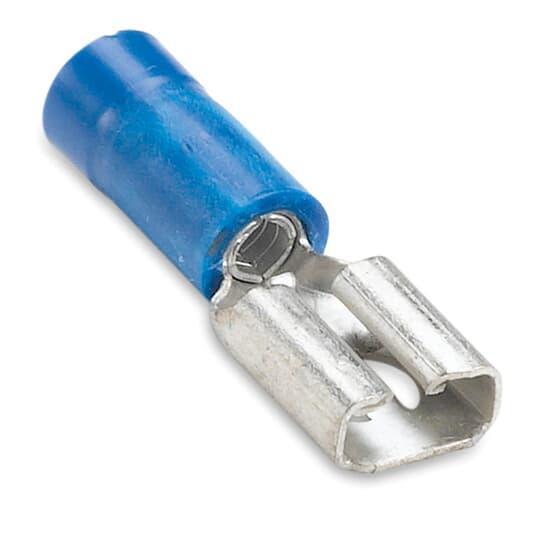

Thomas & Betts RB257M Sta-Kon Female Disconnect
Part Number # RB257M
SKU # 39783
Thomas & Betts RB257M Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | RB257M |
| SKU #: | 39783 |
| Dimensions: | 0.96 in L x 0.29 in W |
| Finish: | Electroplated Tin |
| Insulated: | Insulated |
| Series: | 250 |
| Specifications: | 0.17 in Dia Maximum Insulation, 0.03 in THK Stock |
| Terminal Type: | Crimp |
| UNSPSC: | 39121447 |
| UPC: | 00786210862187 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts RB257M Sta-Kon Female Disconnect
Brand: Thomas & Betts
Part Number: RB257M
Sta-Kon Female Disconnect, Series: 250, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Brazed Seam Barrel, Crimp Terminal, 600 VAC, 0.17 in Dia Maximum Insulation, 0.03 in THK Stock, 105 deg C, Brass, Blue, Electroplated Tin, 0.96 in L x 0.29 in W, Insulated: Insulated
Additional Description: TB -RB257M INS VIN FEM 250 DSC NO16-14 MYLAR
Catalog Description: Vinyl Insulated Female Disconnect, Length .96 Inches, Width .29 Inches, Maximum Insulation .170, Tab Size .250x.032, Wire Range #16-#14 AWG, Color Blue, Copper, Tin Plated, On Mylar Tape, 1,000 Pack
RB257M Item Features
- Vinyl insulated
- Unique construction of the female disconnect offers long term dependability
- Funnel entry insulators enable easier inserting of wire into barrel
- Brazed seam serrated barrel provides maximum tensile strength
- Suitable for use with WT145C, WT2000, WT112M, ERG4001, ERG4003, 12050 tools
- Color-coded for easy installation
- Complete line of installing tools engineered to match tool with terminal
RB257M Standards
UL E66716 / UL E66716SKU #39783Part Number #RB257MUNSPSC39121447UPC00786210862187
Image provided may only be a representation of final product and may include optional equipment
